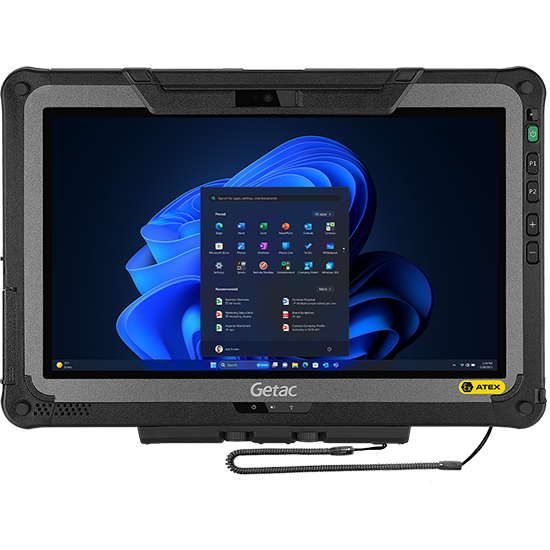

Getac F110-EX

ATEX certified fully rugged tablet.

The Getac F110-EX ATEX certified fully rugged tablet brings powerful computing capabilities to Zone 2/22 hazardous environments.


ATEX CERTIFIED FULLY RUGGED TABLET

The new fully-rugged F110-EX offers an office computer‘s power and functional diversity without compromising a tablet’s slim form factor and easy vehicle-mounted operation. Its 11.6-inch screen delivers a very comfortable touchscreen or split-screen experience, while cutting-edge connectivity enables a superbly productive workday.

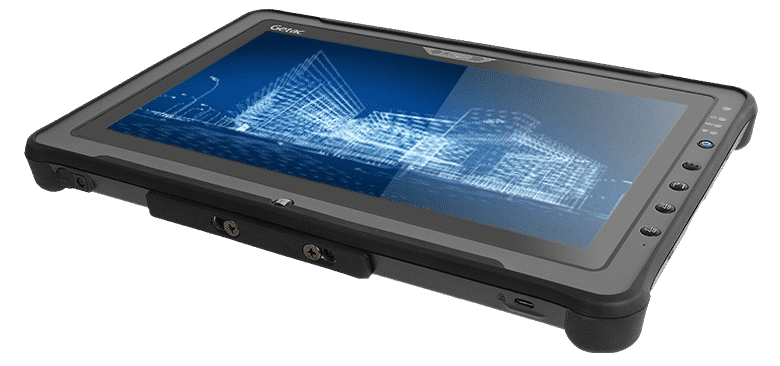

Built To Survive™

Only Getac manufacturers rugged tablets down to the chassis. Engineered to protect the computer against drops, shocks, spills, vibration, dust, liquid and more, the F110-EX has been independently tested and certified to MIL-STD-810 standards.

ATEX AND IECEX CERTIFIED

Certified for hazardous locations, the F110-EX fully rugged tablet offers ATEX and IECEx Zone 2/22 certification for use in potentially explosive atmospheres.


REAL-TIME PERFORMANCE

The new F110-EX delivers more power, enhanced data storage, improved battery capability, and faster connectivity, minimizing your workday’s wait time, lag time, and downtime. Its 11th-gen Intel® Core™ Processor with integrated Intel® Iris® Xe Graphics can handle anything a tablet might be asked to do, while its new PCIe Solid State Drive (SSD) reads and loads nearly five times faster than its predecessor.

CUTTING-EDGE CONNECTIVITY

The F110-EX offers the newest and fastest wired and wireless connection options available. Thunderbolt™ 4 offers 40Gbps data sharing with other devices, while Wi-Fi 6 (802.11ax) offers nearly five times speedier WLAN connectivity than the previous generation, and more reliability in dense deployments. The new Bluetooth 5.2 standard enhances connectivity with various Low-Power Wide-Area (LPWA) devices, while Wireless WAN with integrated GPS/GLONASS receiver, incorporating the latest Sierra Wireless module, delivers advanced air interface connectivity, including LTE-Advanced (LTE-A).

USER-FRIENDLY DESIGN

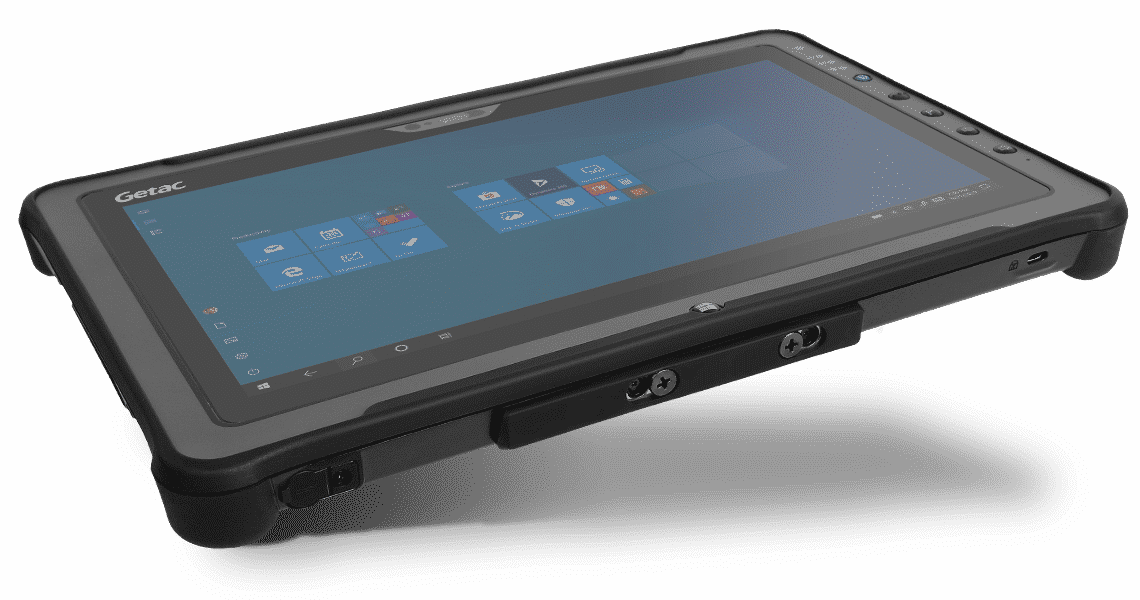

The F110-EX is designed for convenience. Its thin and light chassis, with optional hard handle and strap, make it very easy to carry, while its new and 25% brighter 11.6-inch touchscreen (up to 1,000 nits) with Getac’s proprietary LumiBond® technology makes it easy to read and use (via finger, glove, or stylus), in sunlight and rain. Also available is a new enhanced-capacity battery option, delivering significant performance gains over previous generations.

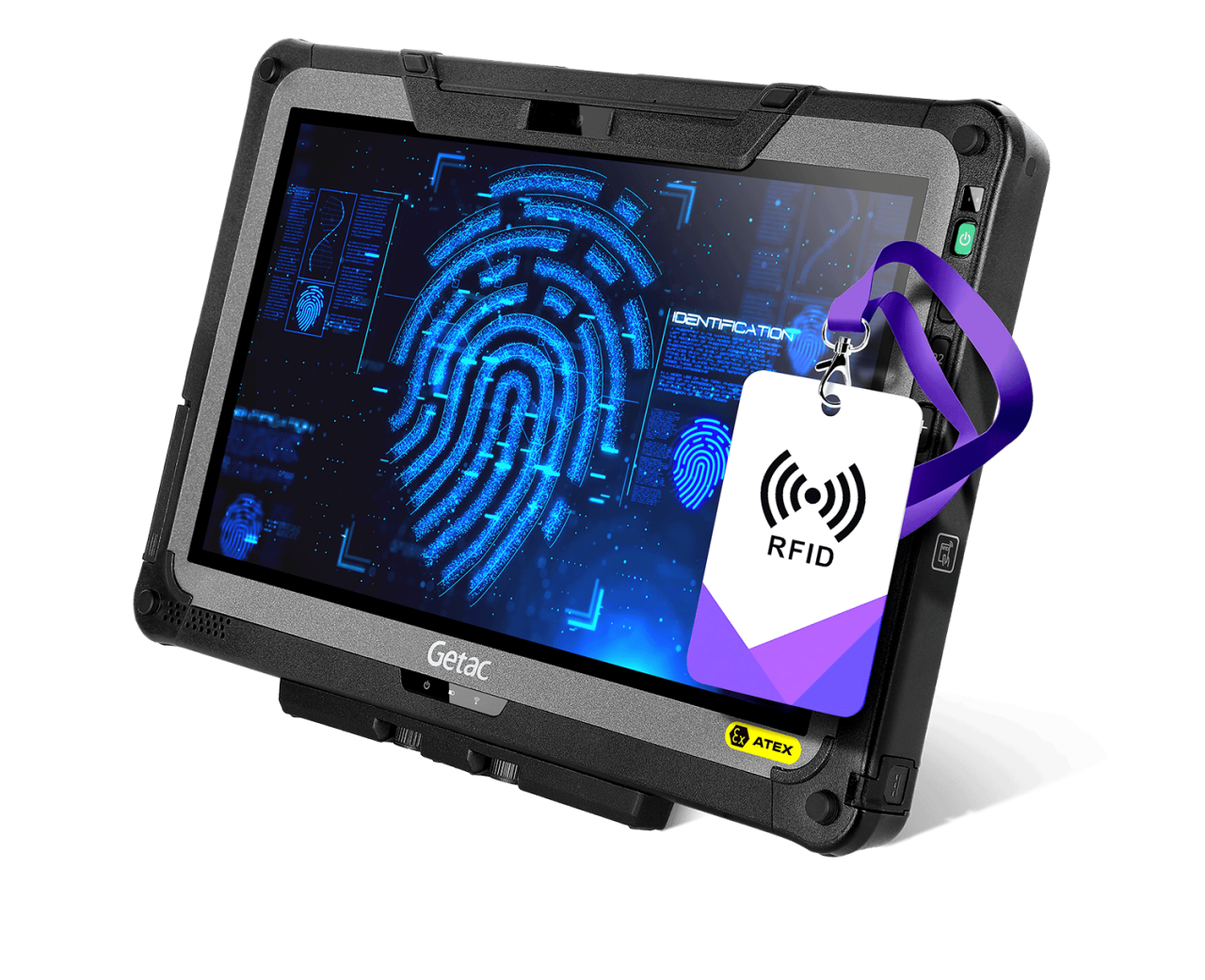

FRICTIONLESS SECURITY

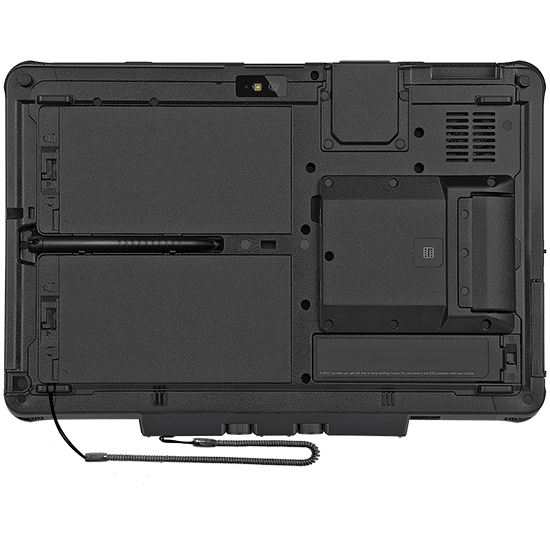

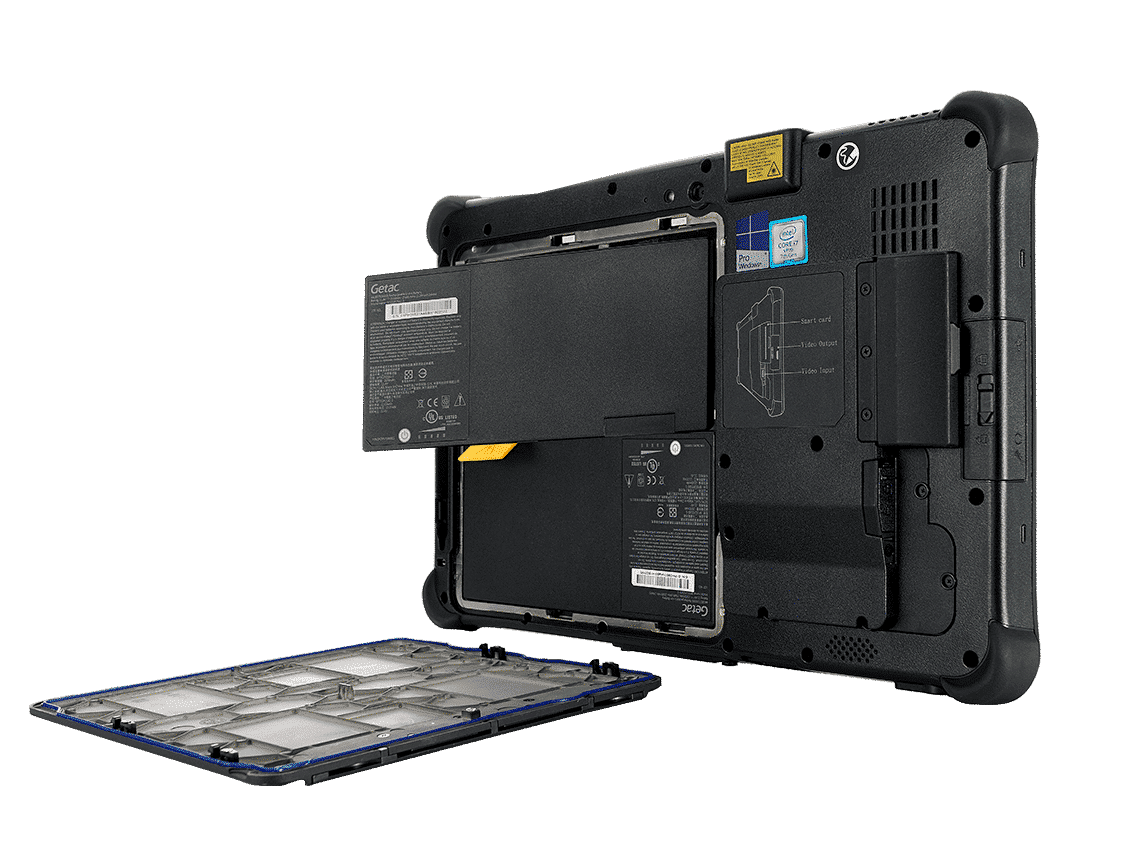

Convenience also extends to the F110-EX’s security features, which offer all the measures expected of an industrial device without disruption, hindrance, or friction with your work. Gone are the F110-EX’s battery and storage drive covers, enabling easy tool-less removal of the hot-swappable batteries and the SSD for data sharing and security. Added is a new camera privacy shutter, while the expansion slot has been relocated from the device’s back to its side, making assorted multifactor security measures, such as RFID scanning, more easily accessed.

Getac F110-EX Features

F110-EX
11th Gen Intel® Core™ i7 vPro™ Processor
F110-EX
Intel® Iris® Xe Graphics
1000nits02

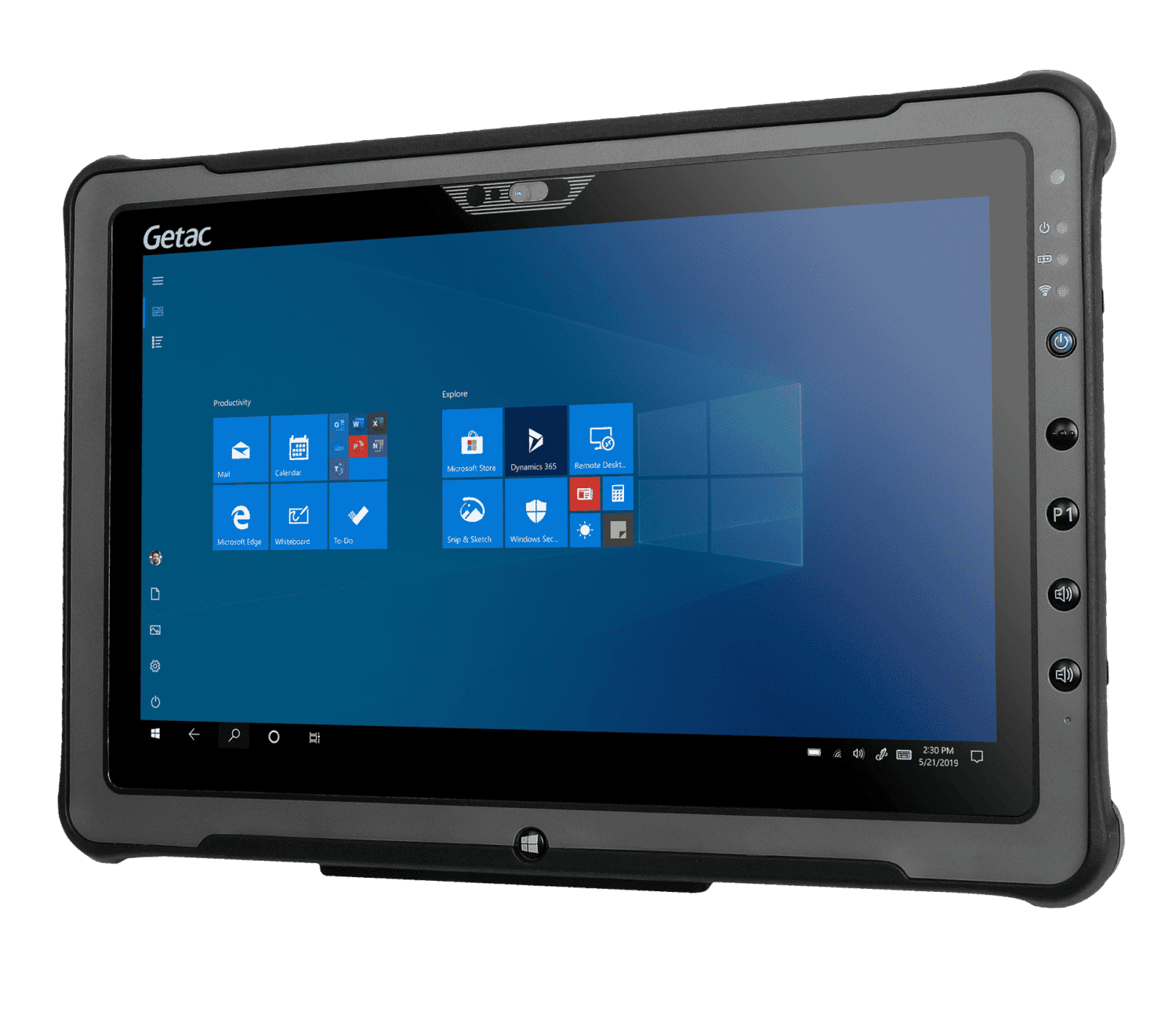

1000 nits FHD 11.6” LumiBond® touchscreen display
v110_sirfstar_icon-1
Dedicated GPS
block-info
Trusted Platform Module 2.0

Beyond Expectations.

Our new Bumper-to-Bumper fully rugged warranties go beyond the expected to protect your productivity.

3-Year Warranty

Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime. That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs. Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days.

Standard 3 years Bumper-to-Bumper

For full details of the warranty protection, see the Terms and Conditions.

For Australia, see the Terms and Conditions.

*Images shown are for reference only. Actual product may vary due to product enhancement.

Ultrabook, Celeron, Celeron Inside, Core Inside, Intel, Intel Logo, Intel Atom, Intel Atom Inside, Intel Core, Intel Inside, Intel Inside Logo, Intel vPro, Itanium, Itanium Inside, Pentium, Pentium Inside, vPro Inside, Xeon, Xeon Phi, and Xeon Inside are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.

Intel, the Intel logo, Intel Core, Intel vPro, Core Inside and vPro Inside are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries

F110-EX TECHNICAL SPECIFICATIONS

Download PDF
Operating System

Windows 11 Pro

Mobile Computing Platform Options

Intel® Core™ i5-1135G7 Processor
Max. 4.2GHz with Intel® Turbo Boost Technology
- 8MB Intel® Smart Cache

Platform Options:
Intel® Core™ i5-1145G7 vPro® Processor
Max. 4.4GHz with Intel® Turbo Boost Technology
- 8MB Intel® Smart Cache

Intel® Core™ i7-1165G7 Processor
Max. 4.7GHz with Intel® Turbo Boost Technology
- 12MB Intel® Smart Cache

Intel® Core™ i7-1185G7 vPro® Processor
Max. 4.8GHz with Intel® Turbo Boost Technology
- 12MB Intel® Smart Cache

VGA Controller

Intel® UHD Graphics

Display

11.6" Wide Viewing Angle TFT LCD FHD (1920 x 1080)
1,000 nits LumiBond display with Getac sunlight readable technology

Storage & Memory

8GB DDR4
Optional: 16GB / 32GB DDR4

256GB PCIe NVMe SSD
Optional: 512GB / 1TB / 2TB PCIe NVMe SSD

Keyboard

Power button
4 tablet programmable buttons

Pointing Device

Touchscreen
Dual mode touchscreen (multi-touch and digitizer)

Expansion Slots

Optional: Smart card reader
Optional: 1D/2D imager barcode reader, or USB 2.0 port, or LAN (RJ45), or serial port + LAN (RJ45) i
Optional ii: HF RFID Reader, or Fingerprint Reader

I/O Interface

5M webcam x 1 iii
8M pixels auto focus rear camera x 1
Audio in/out combo x 1
DC in Jack x 1
USB 3.2 Gen 2 Type-A x 1
Thunderbolt™ 4 Type-C x 1
Optional: SIM card slot x 1 (Micro-SIM, 3FF) v
Optional: Windows Hello face-authentication FHD camera (front-facing) x 1 iii

Communication Interface

Intel® Wi-Fi 6 AX201, 802.11ax
Bluetooth (v5.2) iv
Optional: 4G LTE mobile broadband with integrated GPS v
Optional: 5G Sub-6 with integrated L1/L5 GPS vi, xii
Optional: 10/100/1000 base-T Ethernet i (Occupies expansion slot)

Security Features

TPM 2.0
Kensington lock
Optional: Intel® vPro® Technology
Optional: HF RFID Reader ii, or Smart Card Reader
Optional: Windows Hello face-authentication FHD camera (front-facing) x 1 iii

Power

AC Adapter(90W, 100-240VAC, 50/60Hz)
Li-ion battery(11.4V,typical 2680mAh;min. 2640mAh) x 2
Optional: High capacity Li-ion battery (11.1V, typical 4200mAh; min.4080mAh) x 2

Dimension (W x D x H) & Weight

314 x 224 x 25mm (12.4" x 8.82" x 0.98")
1.58kg (3.48lbs) vii

Rugged Features

MIL-STD-810H certified
IP66 certified
Vibration & 4ft (1.2m) drop resistant
ATEX & IECEx certified

Environmental Specifications

Temperature viii:
- Operating: -21°C to 60°C / -6°F to 140°F
- Storage: -51°C to 71°C / -60°F to 160°F
Humidity:
- 95% RH, non-condensing

Explosion Protection

ATEX/IECEx Zone 2/22
Ex II 3G Ex ic op is IIC T4 Gc
Ex II 3D Ex ic op is IIIC T130°C Dc

Pre-installed software

Getac Utility
Getac Camera
Getac Geolocation
Getac Barcode Manager ix
Getac Driving Safety Utility (trial version)
Getac KeyWedge Barcode Reader Utility (trial version)
Optional: Absolute Persistence®

Optional software

Getac Driving Safety Utility
Getac KeyWedge Barcode Reader Utility
Getac Device Monitoring System (GDMS)
Getac VGPS Utility x

Accessories

Battery (11.4V, typical 2680mAh; min. 2640mAh)
AC adapter (90W, 100-240VAC, 50 / 60Hz)
Digitizer pen

Optional:
Carry bag
Battery (11.4V, typical 2680mAh; min. 2640mAh)
High capacity Li-ion battery (11.1V, typical 4200mAh; min.4080mAh)
Multi-Bay charger (Dual-Bay)
Multi-Bay charger (Eight-Bay)
AC adapter (90W, 100-240VAC, 50 / 60Hz)
Digitizer pen
Protection film
Hard handle xi
Hand strap
Shoulder strap (2-point)
Shoulder harness (4-point; handsfree)

Bumper-to-Bumper warranty

Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime.
That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs.
Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days.

Standard
3 years Bumper-to-Bumper

  1. 1D/2D imager barcode reader, or USB (USB 2.0) port, or Serial port + LAN are mutually exclusive options.
  2. 13.56MHz Contactless HF RFID reader (ISO 15693, 14443 A/B, Mifare and FeliCa™ compliant).
  3. 5M webcam and optional Windows Hello face-authentication FHD camera (front-facing) are mutually exclusive options.
  4. Bluetooth performance and connectable distance may be subject to interference with the environments and performance on client devices, users may be able to reduce effects of interference by minimizing the number of active Bluetooth wireless devices that is operating in the area.
  5. Units with 4G LTE option come with an embedded SIM card slot.
  6. One physical SIM card slot and one eSIM. Network service may vary depending on local telecommunication providers.
  7. Weight and dimensions vary from configurations and optional accessories; optional high-capacity batteries add approx. 6mm (H), 0.24kg.
  8. Tested by an independent third-party test lab following MIL-STD-810H.
  9. Available when barcode reader option is selected.
  10. Models require either embedded or standalone GPS module.
  11. Factory option. Not user swappable.
  12. Support GPS, GLONASS, Galileo, BeiDou and QZSS. Only available in US, UK, EU, Australia and New Zealand.

Information provided herewith is for reference only, available specification shall be subjected to quotation by request.

F110-Ex Accessories


90W AC Adapter
ANTI-STATIC SCREEN PROTECTION FILM with Glossy Finish

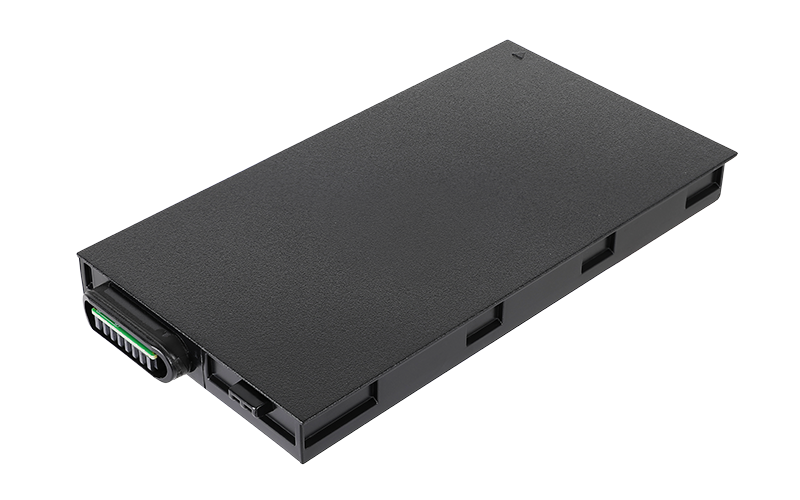

Battery, 3-CELL 2680mAh

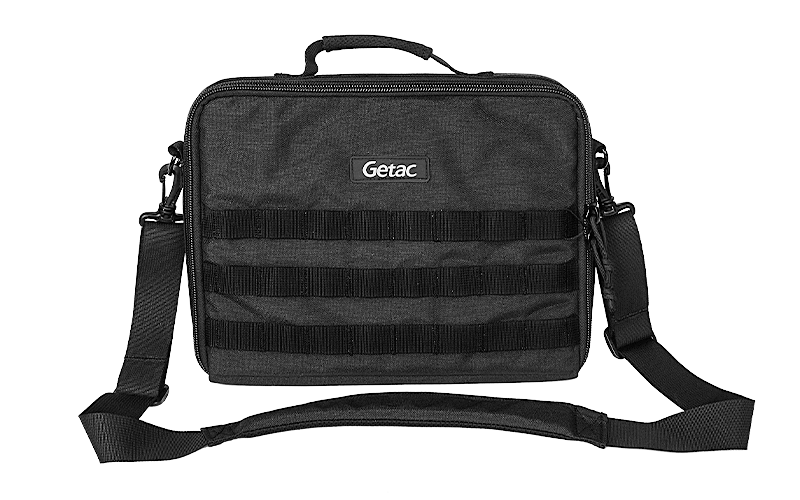

Carry Bag
Digitizer Pen

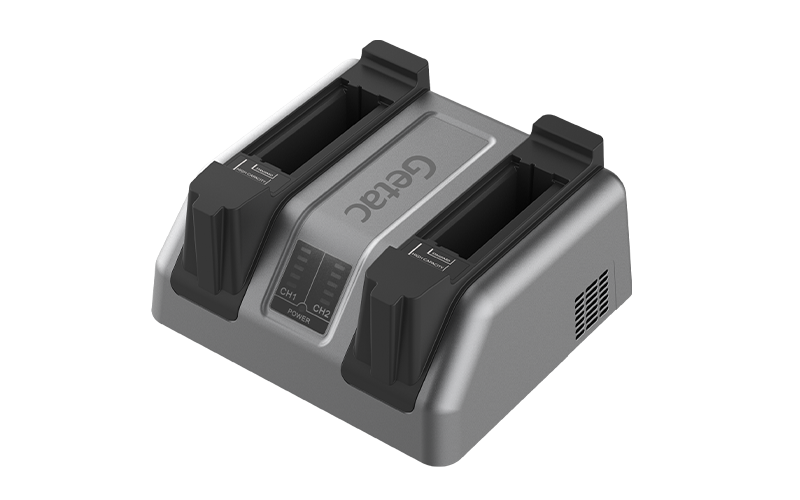

External dual-bay main battery charger
High-capacity Battery 4200mAh
Multi-bay battery charger Eight Bay

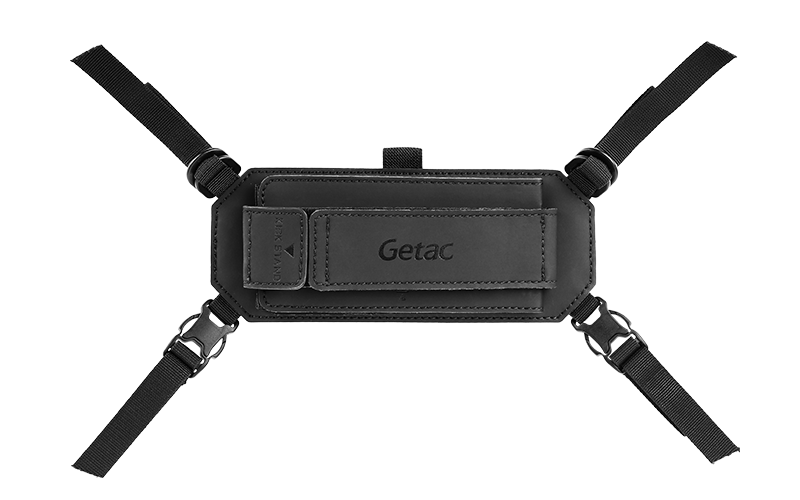

Rotating Hand Strap & Kickstand

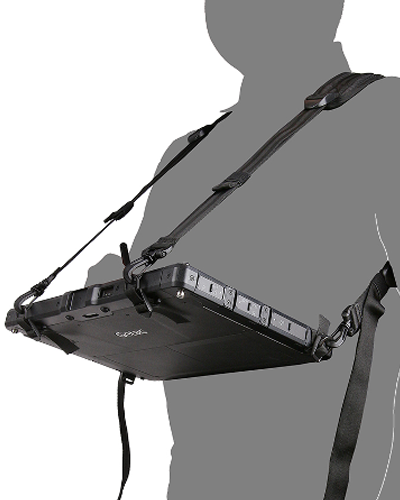

Shoulder Harness 4-point
Shoulder Strap 2-point

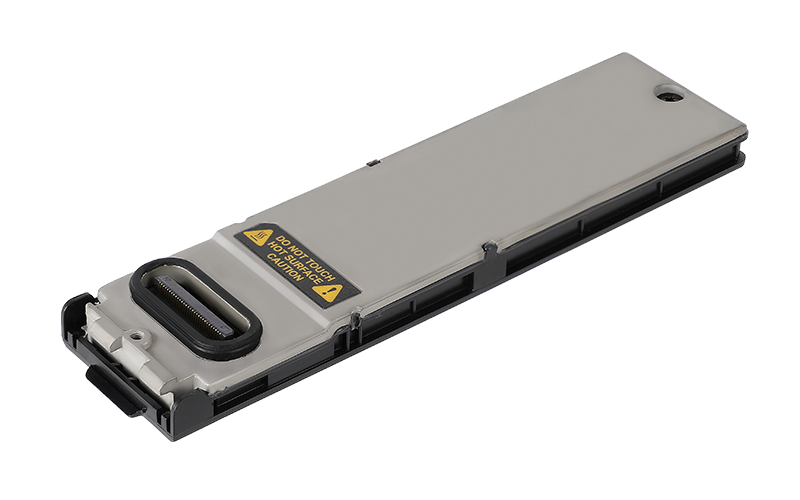

Spare Main Storage with canister

Getac Accessory Warranty - 1 year
