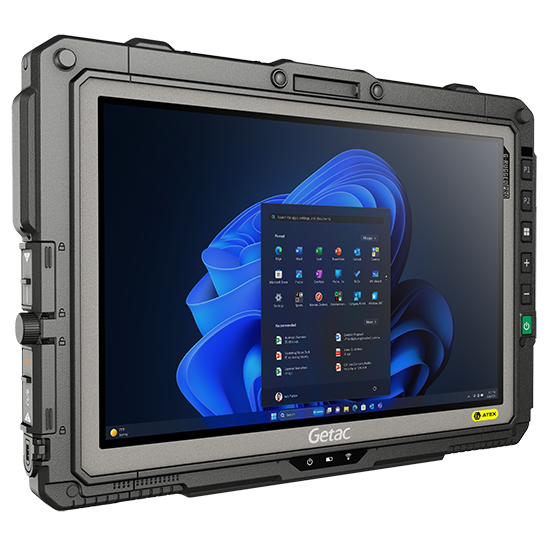

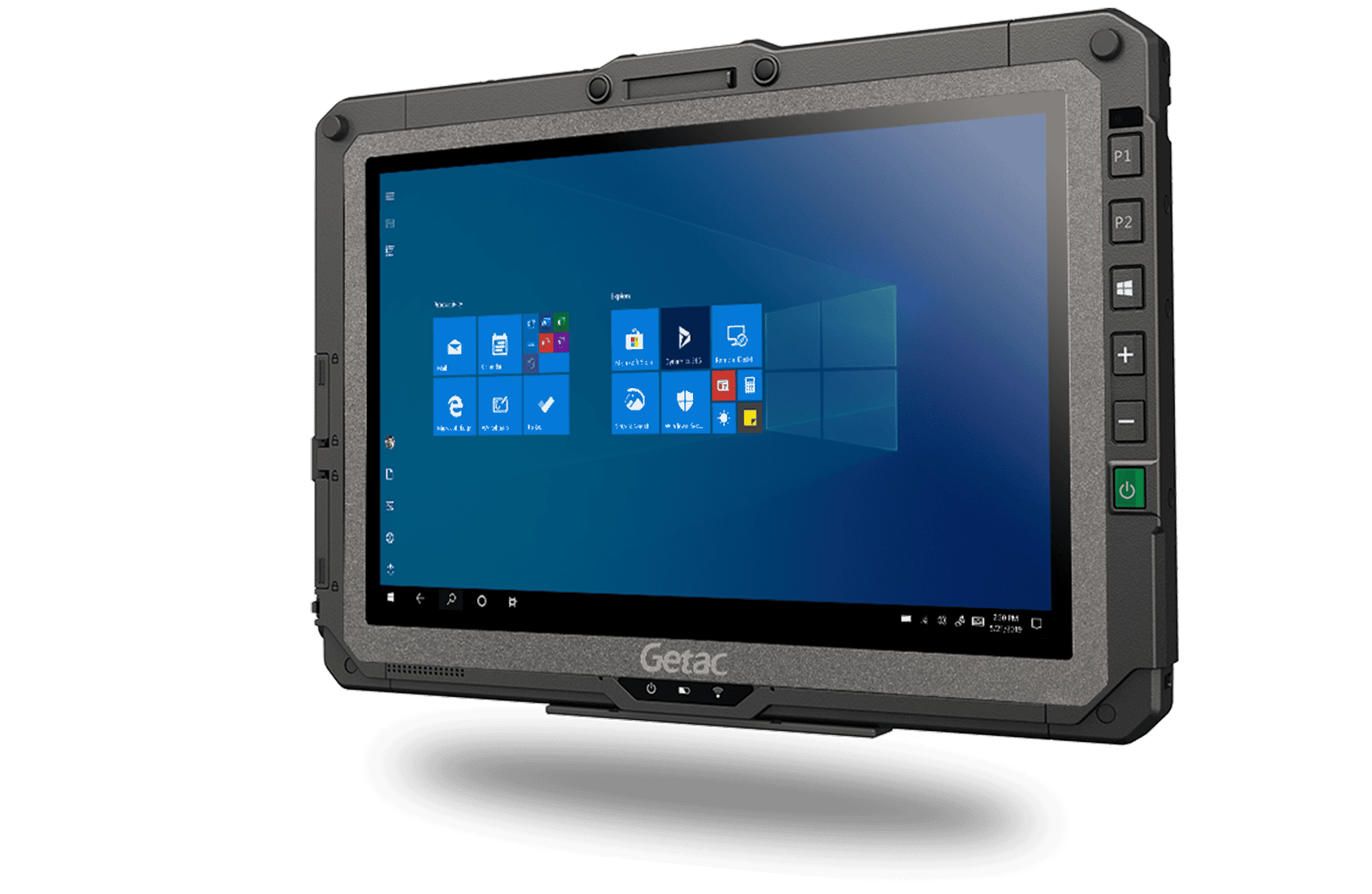

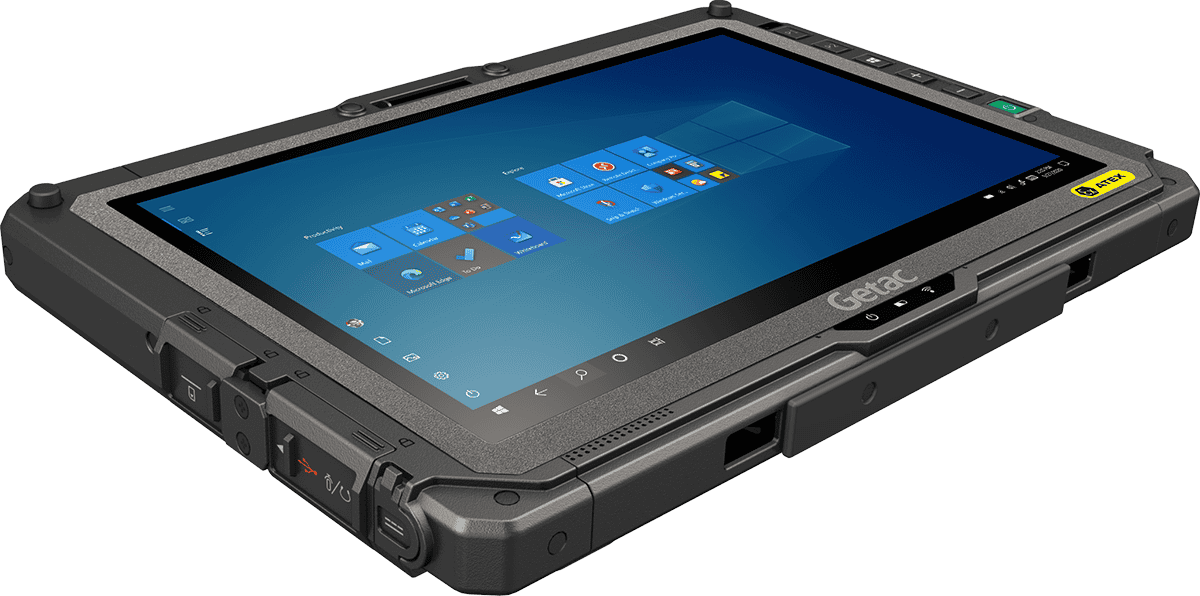

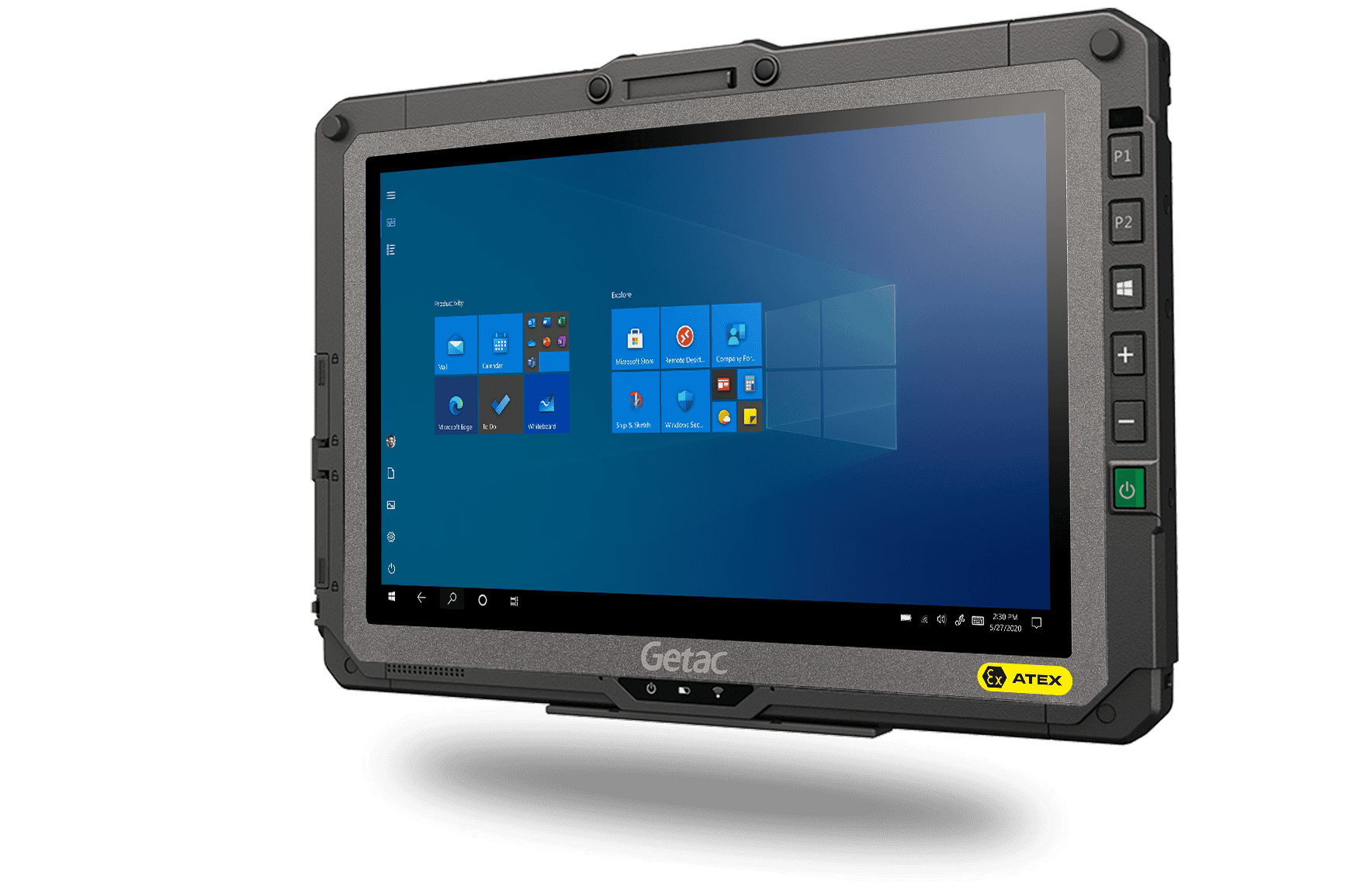

Getac UX10-EX

Rugged mobile power at your fingertips

A versatile and portable ATEX and IECEx certified tablet ready to deliver digital transformation in potentially explosive environments where rugged performance is required.

Industries using UX10-EX

Rugged mobile power at your fingertips

A versatile and portable ATEX and IECEx certified tablet ready to deliver digital transformation in potentially explosive environments where rugged performance is required.

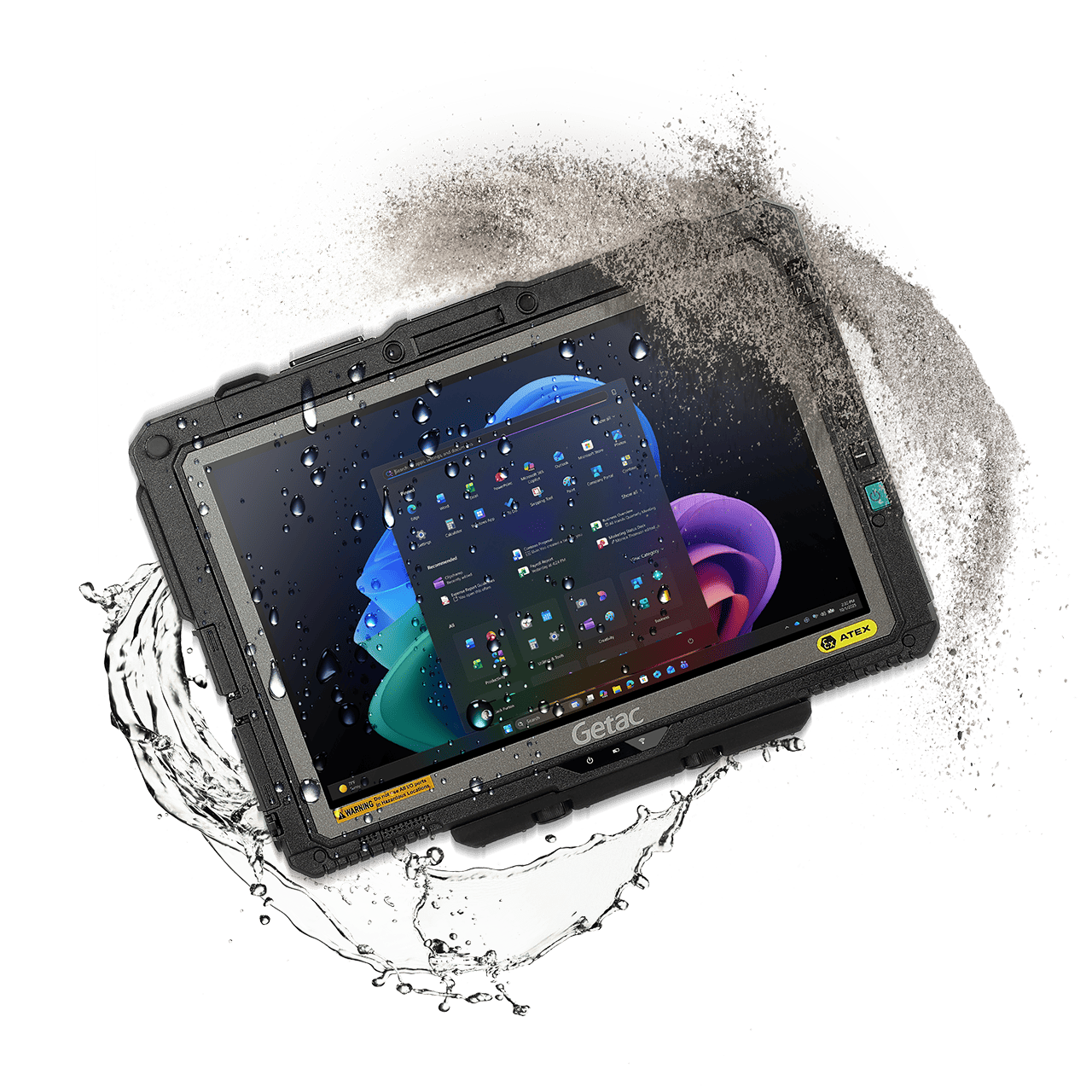

ATEX and IECEx Certified

Certified for hazardous locations, the UX10 fully rugged tablet offers optional ATEX and IECEx Zone 2/22 certification for use in potentially explosive atmospheres.

The versatility to drive cross-sector performance

The UX10-EX has been designed to deliver portable performance across a range of industries, including Industrial Manufacturing, Utility Services, in even the most demanding environments.

The go-anywhere, ultimately secure rugged tablet

An optional hard handle makes the UX10-EX easy to grip and carry, allowing you to take the computing power you require to the place it is most needed.

For total security in authenticating users, the UX10-EX has an RFID reader, and can also offer a Windows Hello face-authentication camera.

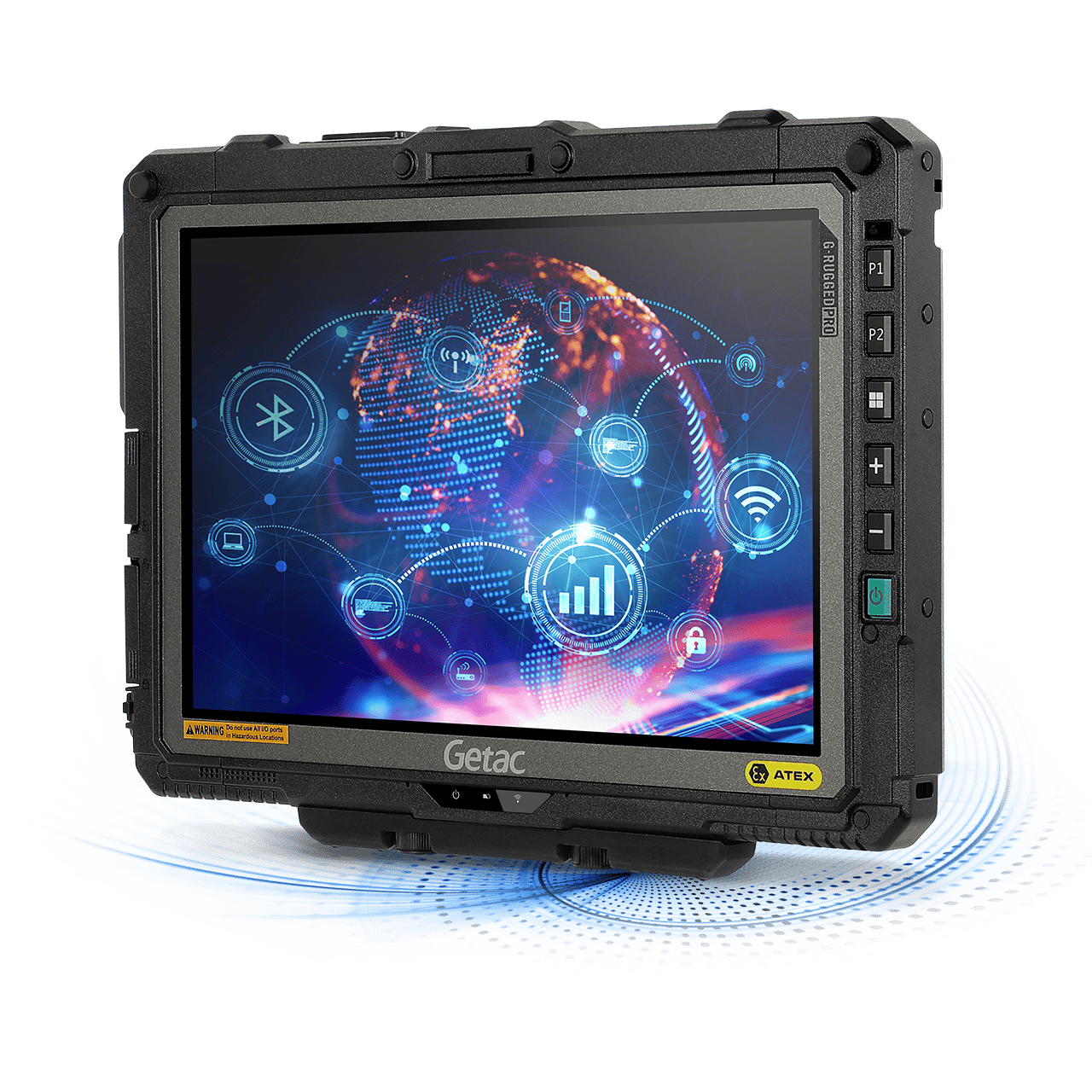

The connected tablet

The UX10-EX seamlessly supports digital transformation, offering digital connectivity through BT, WiFi, and optional 4G LTE. An optional RS232 port can support legacy equipment. An optional RFID reader allows information feed-back into the management system. All these functionalities ensure the UX10-EX stays connected no matter whether outdoors or indoors.

The usable-in-all conditions tablet

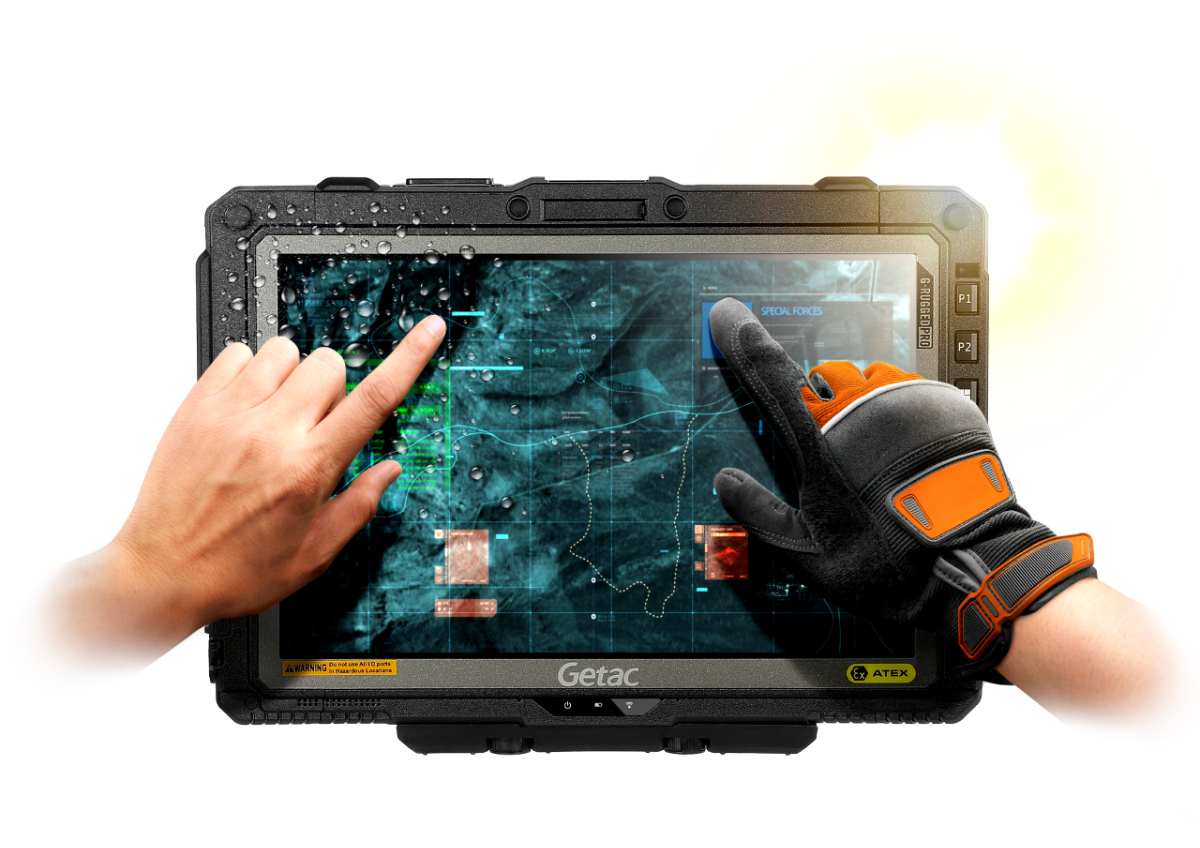

Drop resistance and temperature tolerance aside, the LumiBond screen ensures usability in all conditions. 1000 nits of brightness make the display readable even in sunlight, whilst rain and glove touch capability guarantee visibility and productivity in even the most extreme conditions.

Getac UX10-EX Features

Quad-core CPU

8GB RAM/ 256GB Storage

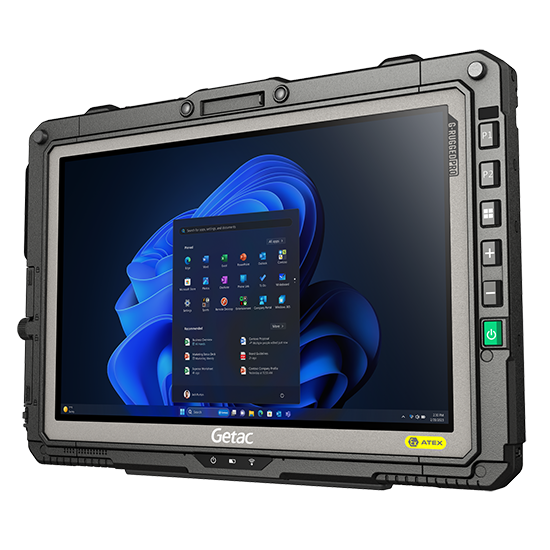

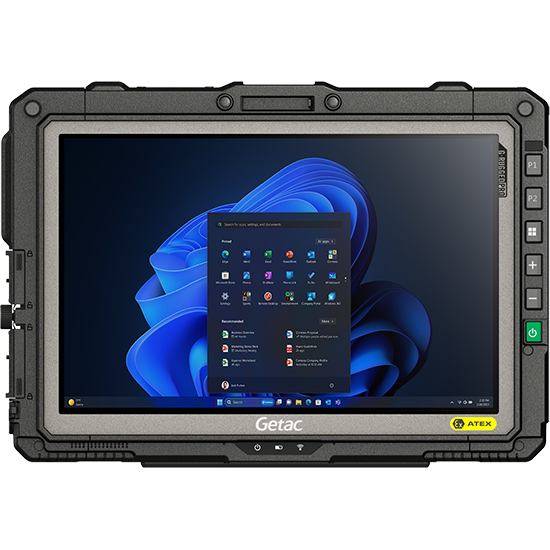

1000 nits FHD 10.1 inch LumiBond touchscreen display

Robust enough for a 6-feet drop

Operational between -29°C to +63°C

Multiple connectivity options and integrated GPS

A range of configurable factory installed options

3-year Bumper-to-Bumper warranty

Industries Using UX10-EX

Smart Meter Reading and Installation, On-site Safety, Utility Asset Management, Workforce Management for Utilities, Mobile GIS, Surveying and Mapping

Utilities

Railroad Management, Airport Management, Port Management, Long-haul Delivery Fleet Management, Warehouse Materials Handling

Transportation & Logistics

Industrial Programming and Robotic Control, Facility management, Compliance and Inspections, Workforce Management, Inventory and Warehouse Management, Factory Automation and Plant Monitoring, EAM and CMMS Solutions.

Industrial Manufacturing

Mining and Forestry applications

Natural Resources

Remote Support, Asset Management, Field Data Analysis, Workplace Safety

Oil & Gas

View All Industries

Beyond Expectations.

Our new Bumper-to-Bumper fully rugged warranties go beyond the expected to protect your productivity.

3-Year Warranty.

Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime. That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs. Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days.

Standard 3 years Bumper-to-Bumper

For full details of the warranty protection, see the Terms and Conditions.

For Australia, see the Terms and Conditions.

*Images shown are for reference only. Actual product may vary due to product enhancement

Generation	G2-R
Operating System	Windows 11 Pro
Mobile Computing Platform	Intel^® Core™ i5-10210U Processor 1.6GHz Max. 4.2GHz with Intel^® Turbo Boost Technology - 6MB Intel^® Smart Cache Platform options: Intel^® Core™ i5-10310U, vPro^® Processor 1.7GHz Max. 4.4GHz with Intel^® Turbo Boost Technology - 6MB Intel^® Smart Cache Intel^® Core™ i7-10510U Processor 1.8GHz Max. 4.9GHz with Intel^® Turbo Boost Technology - 8MB Intel^® Smart Cache Intel^® Core™ i7-10610U vPro^® Processor 1.8GHz Max. 4.9GHz with Intel^® Turbo Boost Technology - 8MB Intel^® Smart Cache
VGA Controller	Intel^® UHD Graphics
Display	10.1" Wide Viewing Angle TFT LCD WUXGA (1920 x 1200) 1,000 nits LumiBond display with Getac sunlight readable technology
Storage & Memory	8GB DDR4 Optional: 16GB / 32GB DDR4 256GB PCIe NVMe SSD Optional: 512GB / 1TB PCIe NVMe SSD
Keyboard	Power button 5 tablet programmable buttons
Pointing Device	Touchscreen Dual mode touchscreen (multi-touch and digitizer)
Expansion Slot	Optional (top side): 1D/2D imager barcode reader, or USB 3.2 Gen 1 Type-A port, or USB 3.2 Gen 1 Type-C port, or LAN port (RJ45), or VGA port ⁱ, or HF RFID reader ⁱⁱ
I/O Interface	FHD webcam x 1 ⁱⁱⁱ 8M pixels auto focus rear camera x 1 Audio in/out combo x 1 DC in Jack x 1 USB 3.2 Gen 2 Type-A x 1 HDMI 1.4 x 1 Optional: SIM card slot x 1 (Micro-SIM, 3FF) ^iv Optional: Windows Hello face-authentication camera (front-facing) x 1 ⁱⁱⁱ
Communication Interface	Intel^® Wi-Fi 6 AX200, 802.11ax Bluetooth (v5.2) ^v Optional: Dedicated GPS ^vi Optional: 4G LTE mobile broadband with integrated GPS ^{iv, vi} Optional: 10/100/1000 base-T Ethernet
Security Feature	TPM 2.0 Kensington lock Optional: Intel^® vPro^® Technology Optional: HF RFID reader ⁱⁱ Optional: Windows Hello face-authentication camera (front-facing) ⁱⁱⁱ
Power	AC adapter (65W, 100-240VAC, 50/60 Hz) Li-ion battery (11.1V, typical 4200mAh; min. 4080mAh) x 1 Optional: High capacity Li-ion battery (10.8V, 9240mAh) x 1
Dimension (W x D x H) & Weight	276.8 x 194.5 x 23.5 mm (10.89" x 7.65" x 0.92") 1.24kg (2.73lbs) ^vii
Rugged Feature	MIL-STD-810H certified IP65 certified Vibration & 6ft (1.8m) drop resistant ^viii ATEX & IECEx certified
Environmental Specification	Temperature ^ix : - Operating: -21°C to 63°C / -6°F to 145°F - Storage: -51°C to 71°C / -60°F to 160°F Humidity: - 95% RH, non-condensing
Explosion Protection	ATEX/IECEx Zone 2/22 Ex II 3G Ex ic op is IIC T4 Gc Ex II 3D Ex ic op is IIIC T130°C Dc
Pre-installed Software	Getac Utility Getac Camera Getac Geolocation Getac Barcode Manager ^x Getac Driving Safety Utility (trial version) Getac KeyWedge Barcode Reader Utility (trial version) Optional: Absolute Persistence^®
Optional software	Getac Driving Safety Utility Getac KeyWedge Barcode Reader Utility Getac Device Monitoring System (GDMS) Getac VGPS Utility ^xi

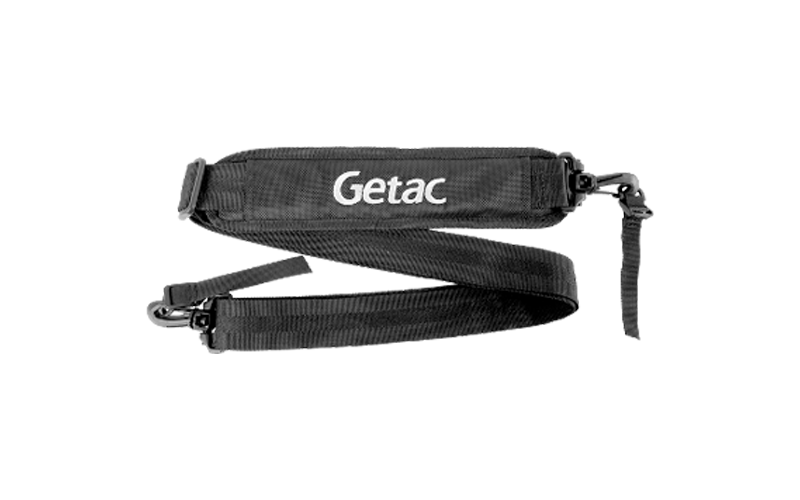

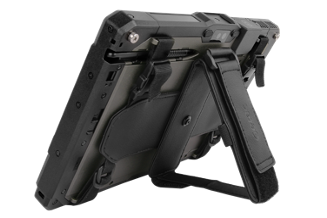

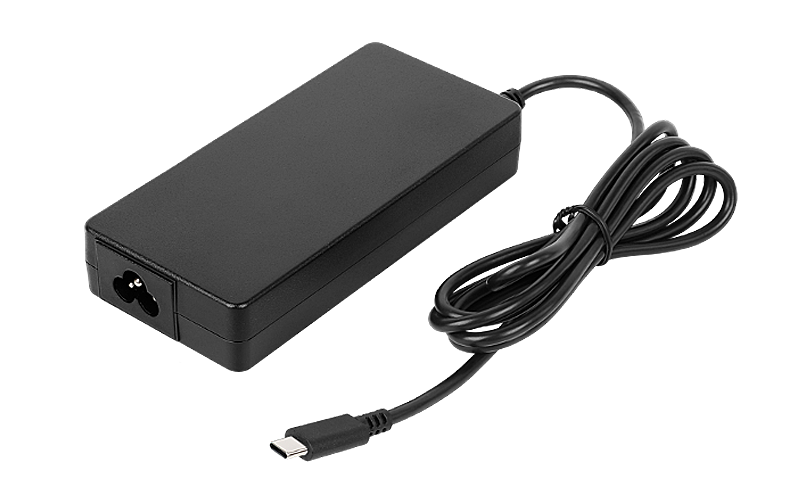

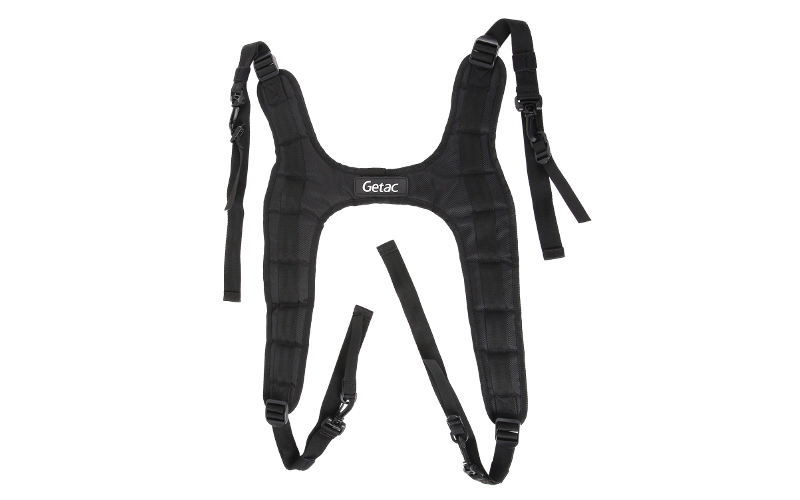

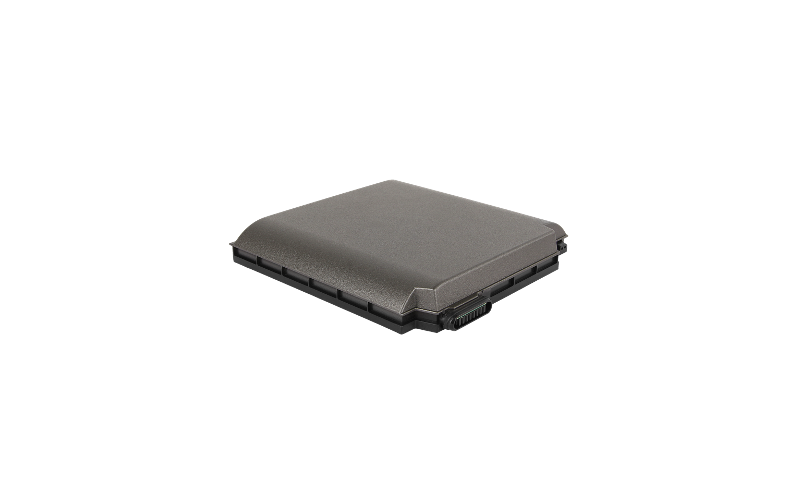

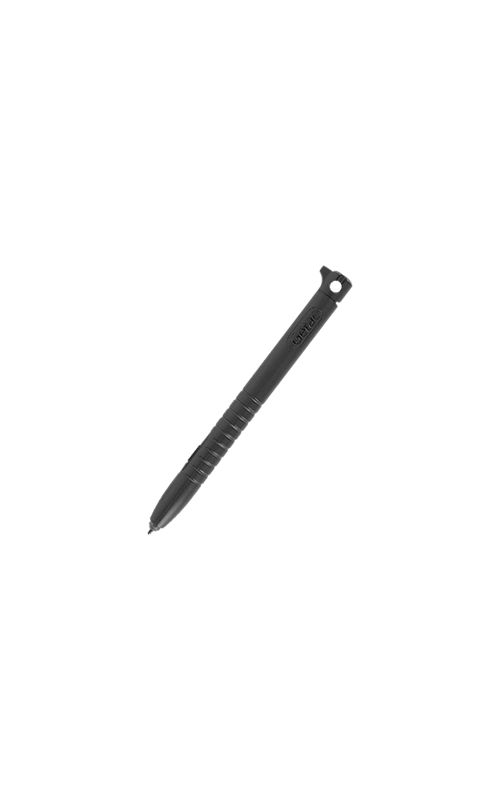

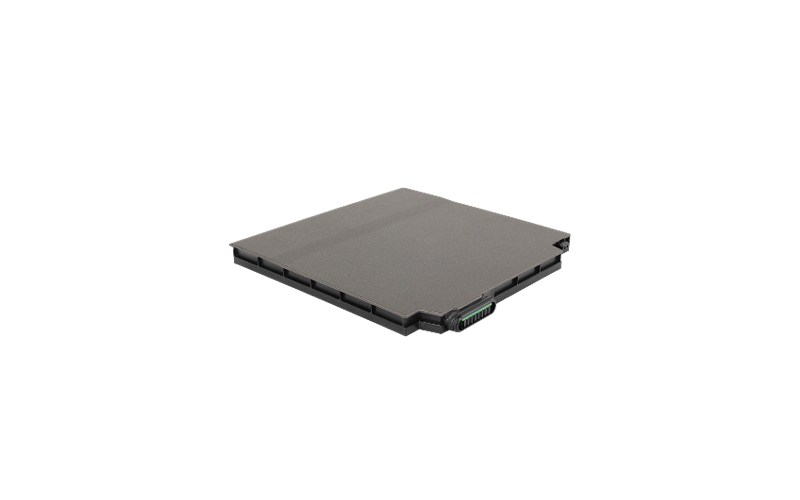

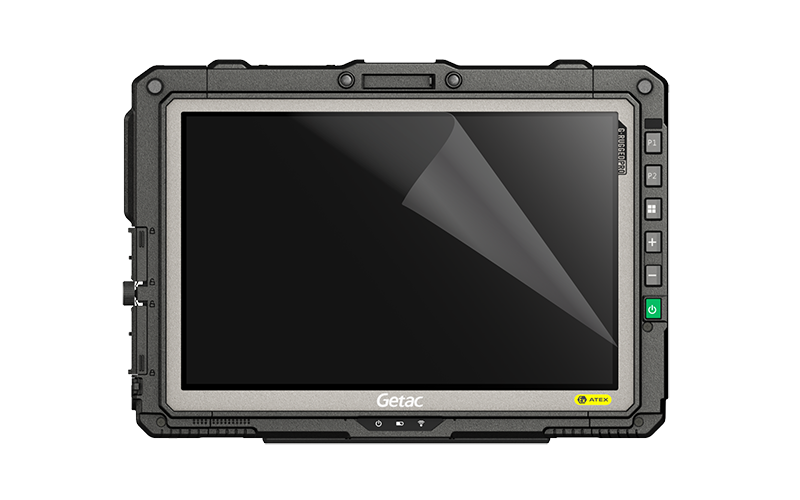

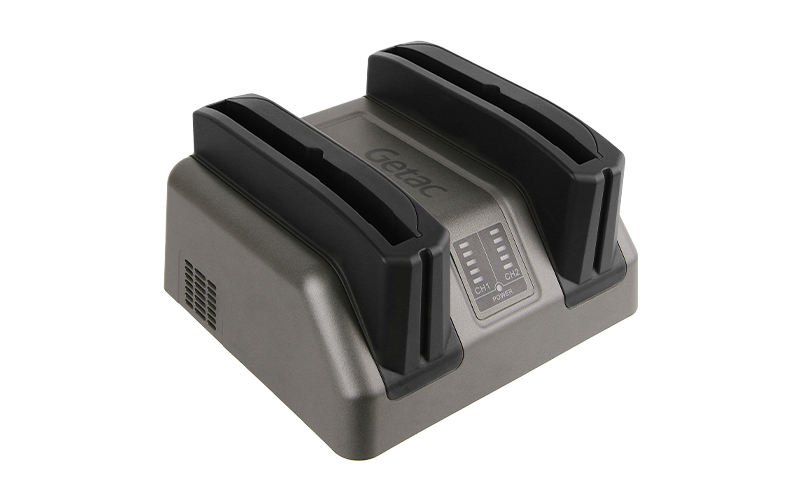

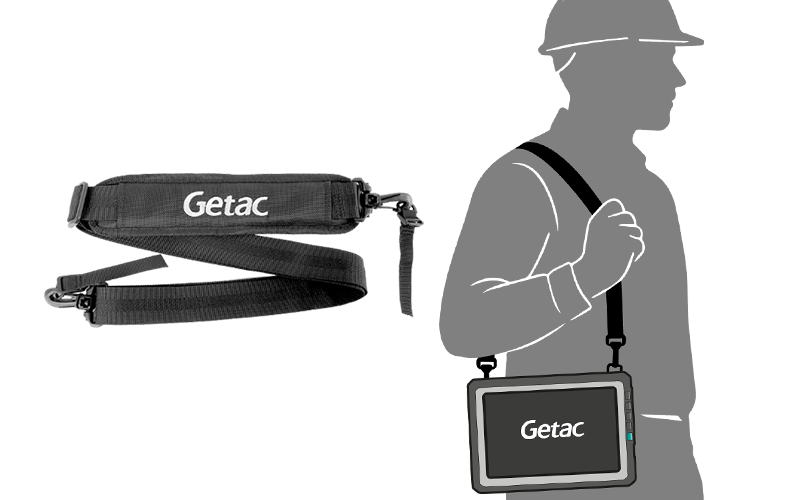

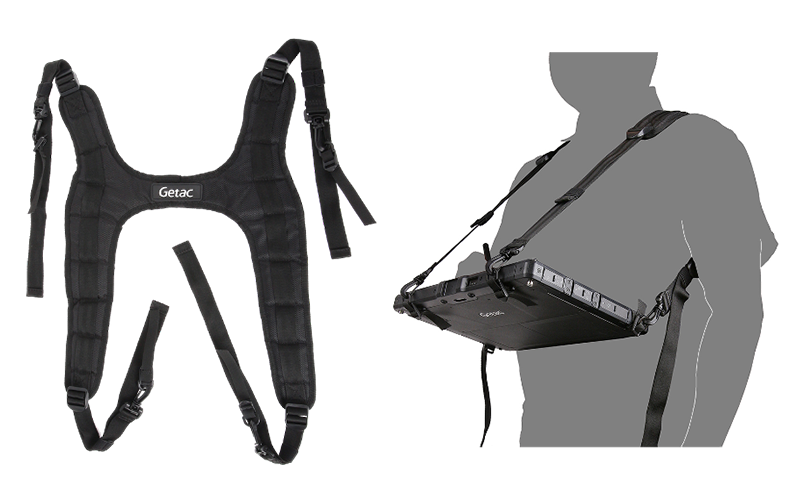

Accessories	Battery (11.1V, typical 4200mAh; min. 4080mAh) AC adapter (65W, 100-240VAC) Digitizer pen Optional: Battery (11.1V, typical 4200mAh; min. 4080mAh) High capacity Li-ion battery (10.8V, 9240 mAh) Multi-Bay charger (Dual-Bay) Multi-Bay charger (Eight-Bay) AC adapter (65W, 100-240VAC) Digitizer pen with tether Anti-static protection film Hand strap Shoulder strap (2-point) Shoulder harness (4-point; handsfree) 100W Type-C adapter
Bumper-to-Bumper Warranty	Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime. That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs. Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days. Standard 3 years Bumper-to-Bumper

1D/2D imager barcode reader, Serial port, USB 3.2 Gen 1 Type-A port, USB 3.2 Gen 1 Type-C port, LAN port (RJ45) and VGA port are mutually exclusive options.
13.56MHz contactless HF RFID reader (ISO 15693, 14443 A/B, Mifare and FeliCa™ compliant).
FHD webcam and optional Windows Hello face-authentication camera (front-facing) are mutually exclusive options.
Units with 4G LTE option come with an embedded SIM card slot.
Bluetooth performance and connectable distance may be subject to interference with the environments and performance on client devices, users may be able to reduce effects of interference by minimizing the number of active Bluetooth wireless devices that is operating in the area.
Supports GPS and Glonass.
Weight and dimensions vary from configurations and optional accessories.
Drop test results vary from configurations and optional accessories.
Tested by an independent third-party test lab following MIL-STD-810H.
Available when barcode reader option is selected.
Models require either embedded or standalone GPS module.

Information provided herewith is for reference only, available specification shall be subjected to quotation by request.
