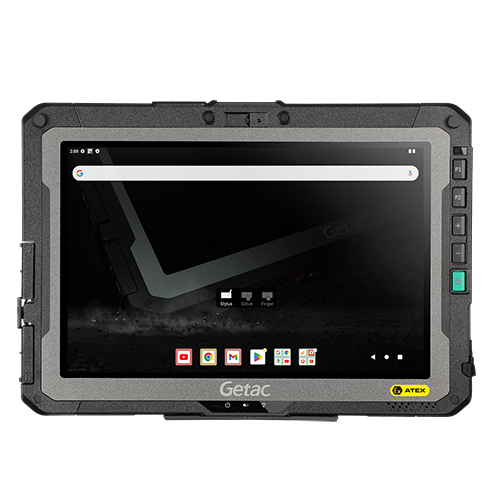

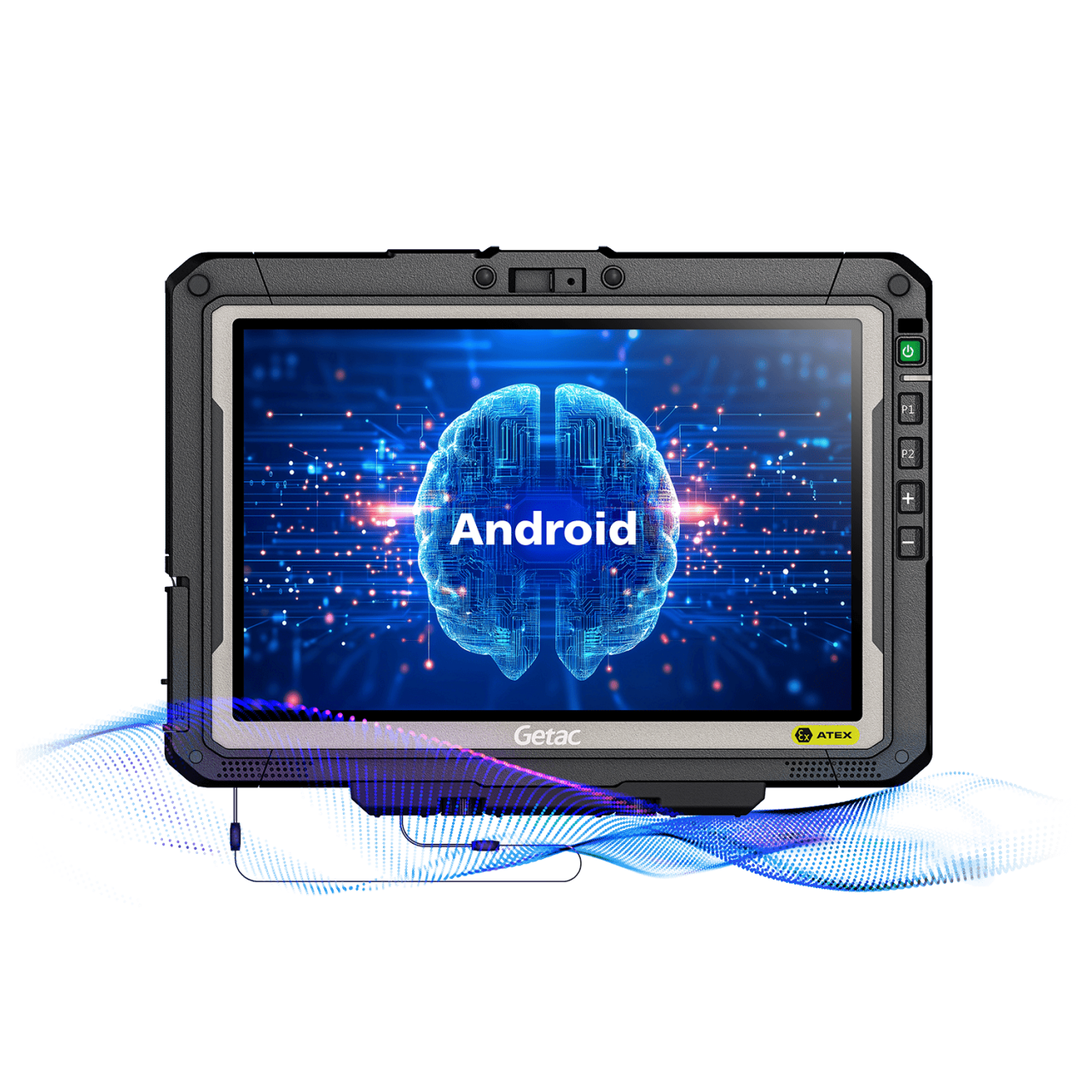

Getac ZX10-EX

The Fully-Rugged Android Tablet For Your Workday

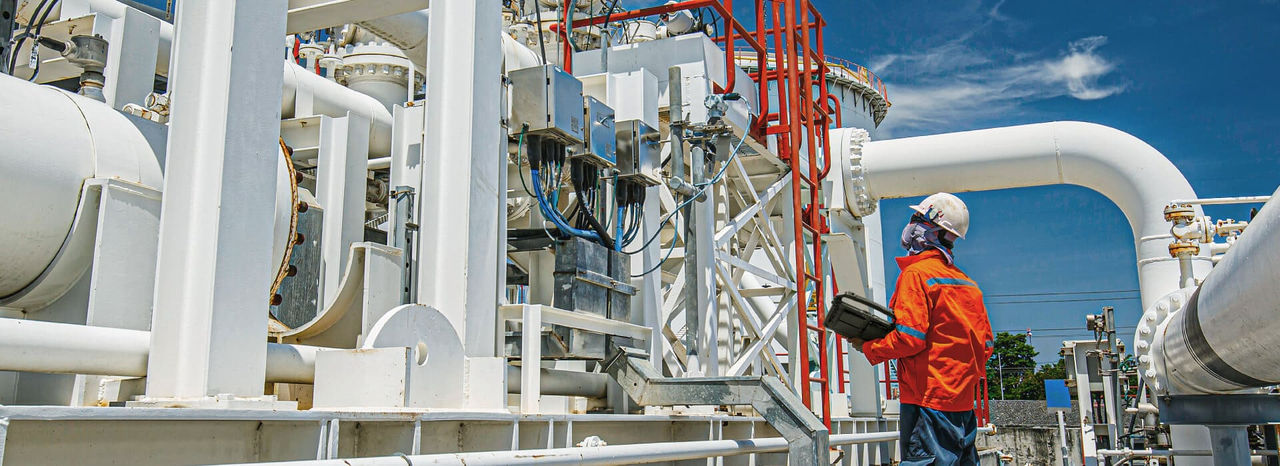

A versatile and portable ATEX and IECEx certified tablet ready to deliver digital transformation in potentially explosive environments where rugged performance is required.


ATEX CERTIFIED FULLY RUGGED TABLET

Certified for hazardous locations, the ZX10-EX fully rugged tablet offers ATEX and IECEx Zone 2/22 certification for use in potentially explosive atmospheres.

RUGGED ANDROID VERSATILITY

The Getac ZX10-EX 10” is our newest and largest fully-rugged tablet to feature the Android 12 operating system, a highly-capable workday solution that combines the intuitive operation, power efficiency, and world of apps you expect with Android with a slim versatile profile well-suited to video conferencing, remote guidance, information capture, and online paperwork.

FULL-SHIFT RELIABILITY

With a full-shift battery life as standard, and even optional higher capacity batteries, ZX10-EX is built to last your entire workday*. And with its Qualcomm Snapdragon 660 CPU, you get a true mobile-first computing platform capable of computationally-intensive tasks with less power consumption.

*Battery performance may vary from device configurations and usage.

SUPERB INTERACTIVE EXPERIENCE

The Getac 10” ZX10-EX enables superb video chat and remote guidance. The 8MP front and 16MP rear camera deliver excellent photos and video capture. Dual integrated microphones filter out loud background noises such as sirens, power tools, and other machinery. Wi-Fi 5 and dual LTE SIM card slots help keep you connected.

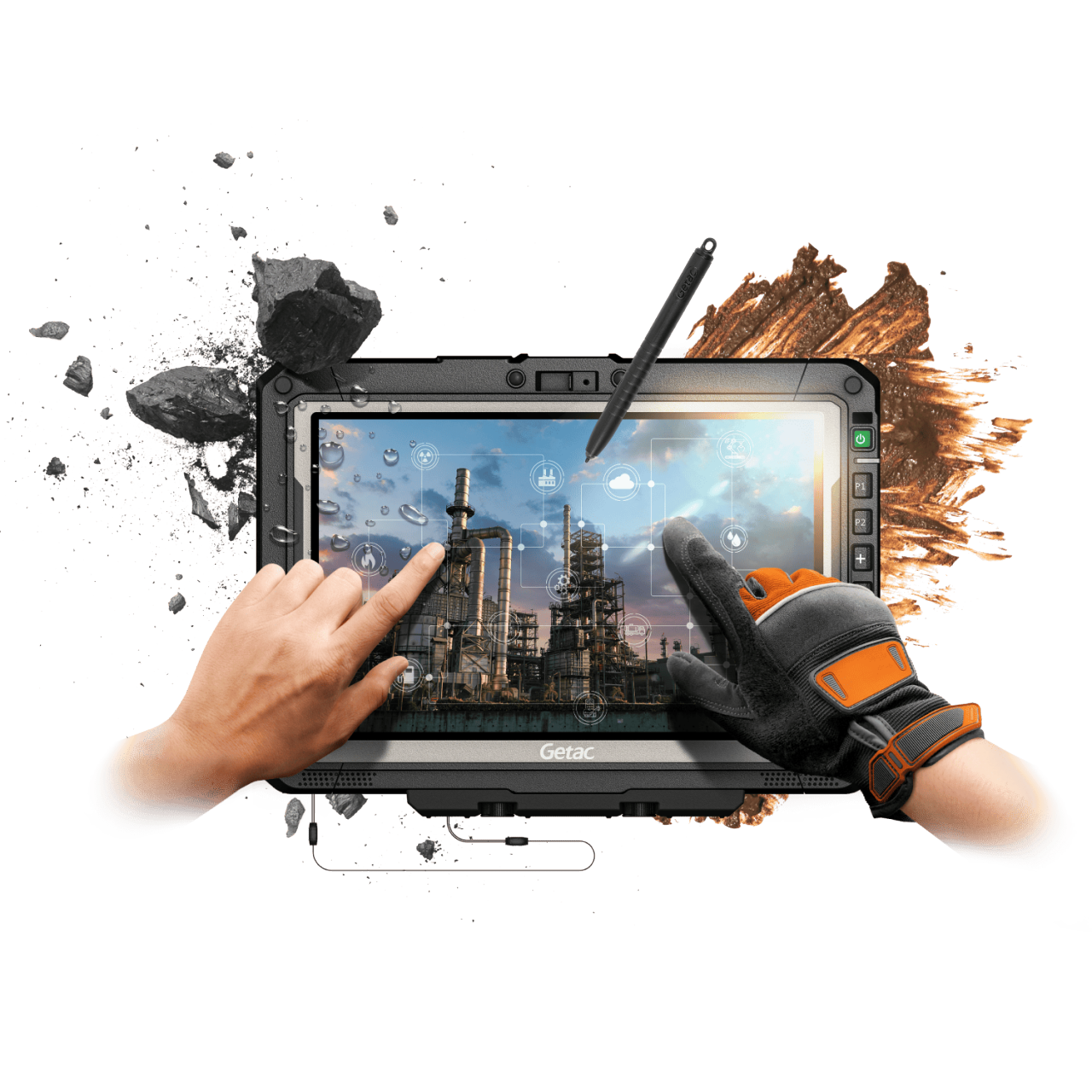

CONVENIENT VERSATILITY

ZX10-EX helps you do more in the field in less time. A touchscreen powered by Getac’s proprietary LumiBond® technology offers a sunlight-readable experience with superior color, contrast, and clarity. Read and sign documents in the cold, the rain, or under bright sunlight, via stylus, gloved finger, or bare finger. Capture data, identify objects, and track assets via the optional RFID scanner and/or optional integrated industrial-grade barcode reader. And with its optional hard-handle with multi-notch orientation, a variety of strap and harness accessories, and a chassis under one-inch thick, it fits right in.

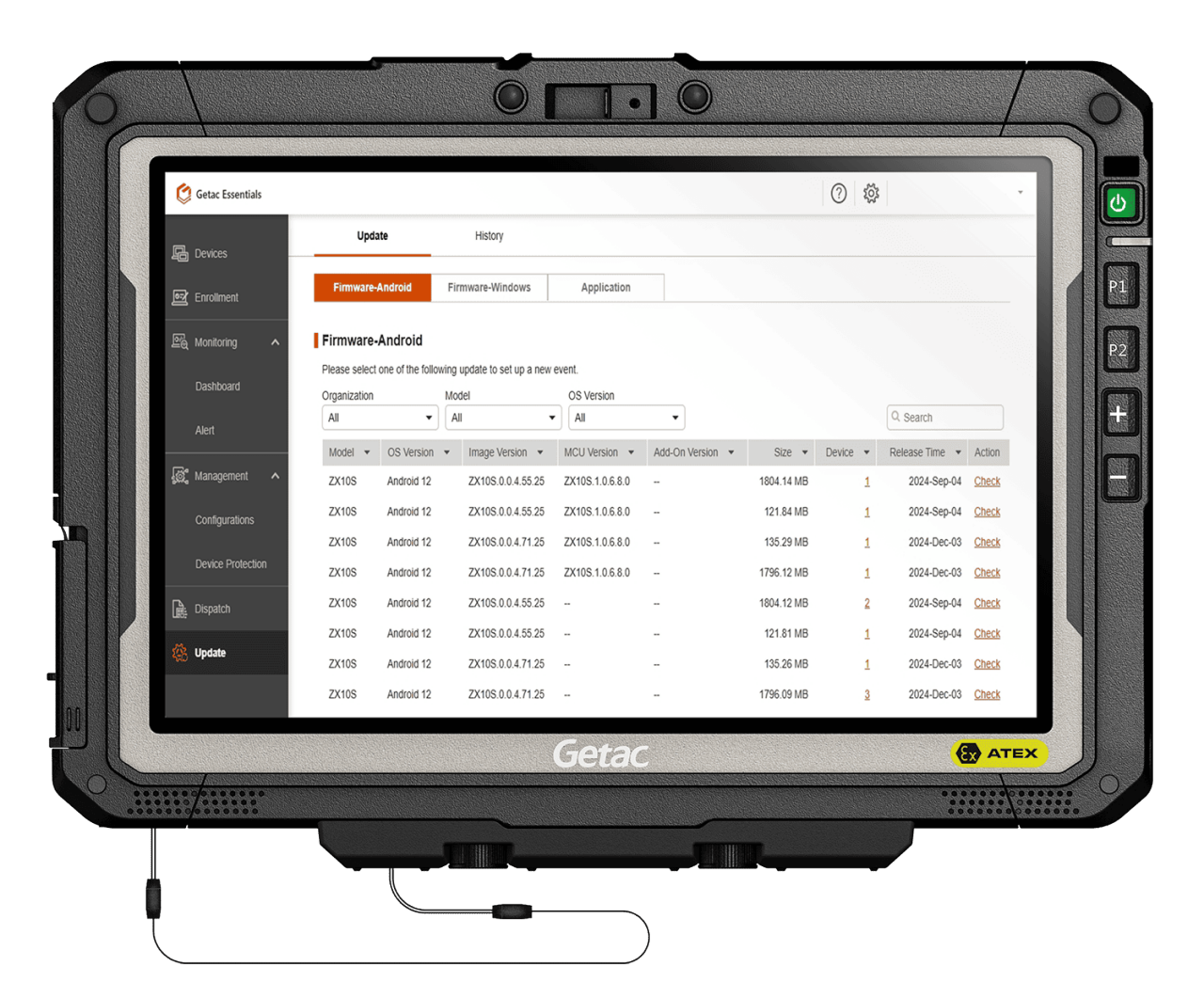

ENTERPRISE-GRADE MANAGEMENT

With ZX10-EX, IT administrators can save time through batch configuration of device and system settings across your deployment, including those for battery-charging, display, navigation, scanning, the quick settings panel, date and time, app update, and its four programmable buttons, via OEMConfig or Getac’s optional proprietary deployXpress Cloud software.

BUILT-TO-SURVIVE™

Getac manufactures rugged tablets down to the chassis. The ZX10-EX was engineered to survive drops, shocks, rain, vibration, dust, liquid and more. IP66-certified, the ZX10-EX can be operated safely in the presence rain or high-pressure water jets. It is certified to a MIL-STD 810H, 6-ft drop rating, and can operate in extreme temperatures from -21°C to 55°C (-5.8°F to 131°F).



Getac ZX10-EX Features

Full-Shift Battery Life
Front and Rear Cameras
Dual Microphones
Dedicated GPS
Operational between -21 °C to 55 °C

Beyond Expectations.

Our new Bumper-to-Bumper fully rugged warranties go beyond the expected to protect your productivity.

3-Year Warranty

Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime. That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs. Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days.

Standard 3 years Bumper-to-Bumper

For full details of the warranty protection, see the Terms and Conditions.

For Australia, see the Terms and Conditions.

*Images shown are for reference only. Actual product may vary due to product enhancement.

ZX10-EX TECHNICAL SPECIFICATIONS

Download PDF
Operating System

Android™ 12.0

Mobile Computing Platform

Qualcomm® Snapdragon™ 660, Octa-core 1.95GHz
Max. 2.2GHz

VGA Controller

Qualcomm® Adreno™ 512 GPU

Display

10.1" TFT LCD WUXGA (1920 x 1200)
Protection film
800 nits LumiBond display with Getac sunlight readable technology
Capacitive multi-touch screen

Storage & Memory

4GB LPDDR4, 64GB eMMC
Optional: 6GB LPDDR4, 128GB eMMC

Device Button

Power button
4 tablet programmable buttons

Pointing Device

Touchscreen
- Capacitive multi-touch screen

Expansion Slot

Optional: 1D/2D imager barcode reader
Optional: Smart card reader
Optional: HF RFID/NFC combo reader i

I/O Interface

8M pixels webcam x 1
16M pixels auto focus rear camera x 1
Audio in/out combo x 1
DC in Jack x 1
USB 3.2 Gen 1 Type-C w/ DP & PD x 1
USB 2.0 (Host) x 1
MicroSD x 1

Communication Interface

Wi-Fi 802.11 a/b/g/n/ac
Bluetooth (v5.0) ii
Dual Micro SIM
Dedicated GPS
Optional: 4G LTE mobile broadband

Security Feature

Kensington lock
Optional: HF RFID/NFC combo reader i
Optional: Smart card reader

Power

AC adapter (65W, 100-240VAC, 50/60Hz)
Li-Ion smart battery (3.84V, typical 4990mAh; min. 4870mAh) x 2
Optional: High capacity battery (3.84V, typical 9980mAh; min. 9470mAh) x 2

Dimension (W x D x H) & Weight

275 x 192 x 17.9mm (10.8 " x 7.56" x 0.7")
1.09kg (2.40lbs) iii

Rugged Feature

MIL-STD-810H certified
IP66 certified
Vibration & 6 feet (1.8m) drop resistant
ATEX & IECEx certified

Environmental Specification

Temperature iv:
- Operating: -21°C to 55°C / -5.8°F to 131°F
- Storage: -51°C to 71°C / -60°F to 160°F
Humidity:
- 95% RH, non-condensing

Explosion Protection

ATEX/IECEx Zone 2/22
Ex II 3G Ex ic op is IIC T4 Gc
Ex II 3D Ex ic op is IIIC T130°C Dc

Pre-installed software

Getac Camera
Getac Input Method
Getac Driving Safety Utility (trial version)
Getac deployXpress (trial version)
Getac settings and Google applications (Search, Chrome, Gmail, Maps, YouTube, Play, Drive, YouTube music, Google TV, Duo and photos)
Getac enrollXpress

Optional software

Getac Driving Safety Utility
Getac deployXpress
Getac OEMConfig

Accessories

Battery (3.84V, typical 4990mAh; min. 4870mAh)
AC adapter (65W, 100-240VAC, 50/60Hz)
Capacitive hard tip stylus & tether

Optional:
Carry bag
Battery (3.84V, typical 4990mAh; min. 4870mAh)
High capacity Li-ion battery (3.84V, typical 9980mAh; min. 9470mAh)
AC adapter (65W, 100-240VAC, 50/60Hz)
Multi-Bay charger (Dual-Bay)
Multi-Bay charger (Eight-Bay)
100W Type-C AC adapter
Protection film
Rotating hand strap with kickstand
Shoulder strap (2-point)
Shoulder harness (4-point; handsfree)
Capacitive hard tip stylus & tether
Hard handle v

Bumper-toBumper warranty

Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime.
That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs.
Bumper-to-Bumper is your hassle-free guarantee.
That means you can depend on us to have your unit back in service within days.

Standard
3 years Bumper-to-Bumper

  1. 13.56MHz HF RFID/NFC combo reader (ISO 15693, 14443 A/B, Mifare and FeliCa™ compliant).
  2. Bluetooth performance and connectable distance may be subject to interference with the environments and performance on client devices, users may be able to reduce effects of interference by minimizing the number of active Bluetooth wireless devices that is operating in the area.
  3. Weight and dimensions vary from configurations and optional accessories; optional high-capacity batteries add approx. 7.65mm (H), 144g.
  4. Tested by an independent third-party test lab following MIL-STD-810H.
  5. Factory option. Not user-swappable.

Information provided herewith is for reference only, available specification shall be subjected to quotation by request.

ZX10-EX Accessories


100W Type-C AC adapter
65W AC Adapter with Power Cord
Anti-static Screen Protection Film
CAPACITIVE HARD TIP STYLUS & TETHER
Carry Bag
EXTERNAL DUAL BAY MAIN BATTERY CHARGER
Hard Handle
High-capacity Battery 9980mAh
MULTI-BAY BATTERY CHARGER EIGHT BAY
Rotating Hand Strap & Kickstand
Shoulder Harness 4-point
Shoulder Strap 2-point

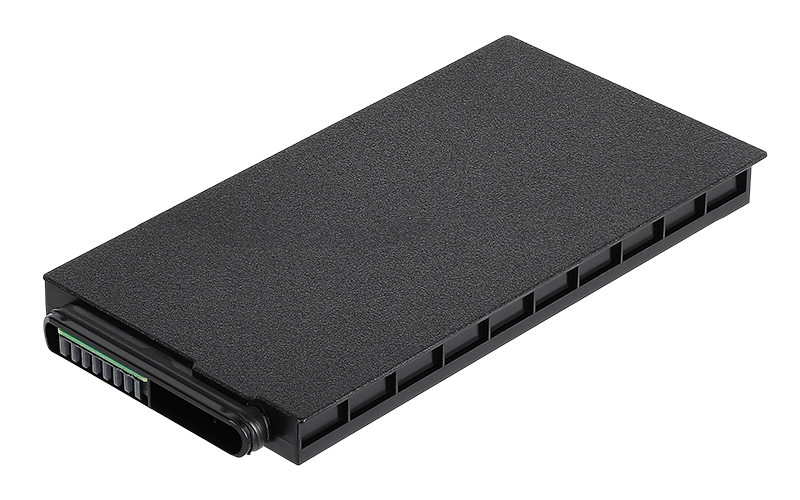

Standard Battery 4990mAh
