SPECIFICATIONS |

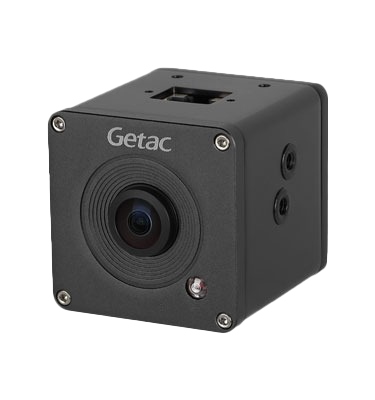

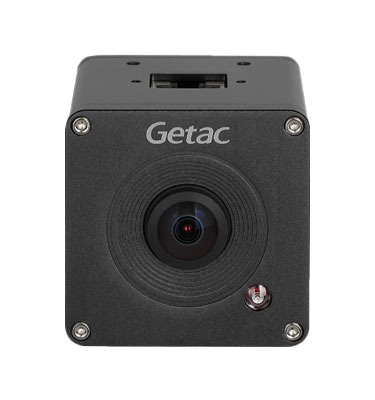

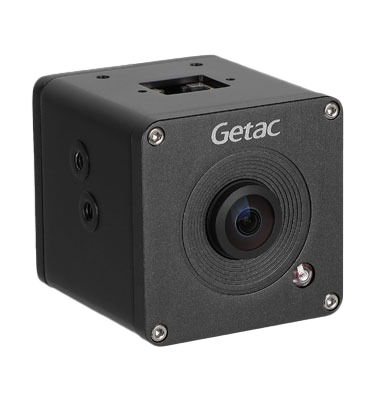

 CA-NF21 FHD Camera |
 CA-NF21

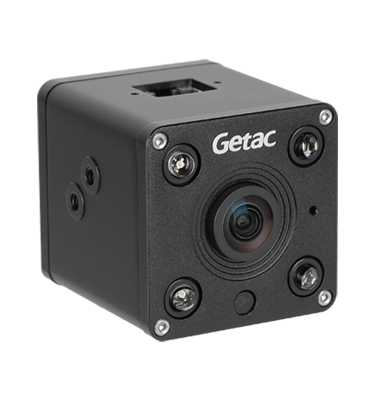

FHD Infrared Backseat Camera |

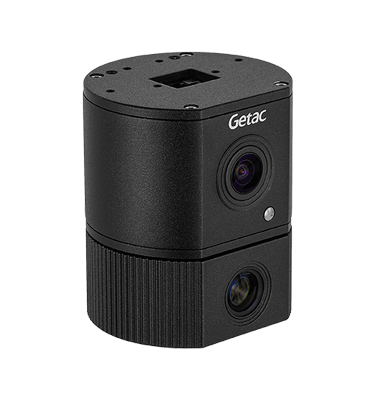

 CA-NF22 QHD Dual Lens Camera |
 CA-NF42

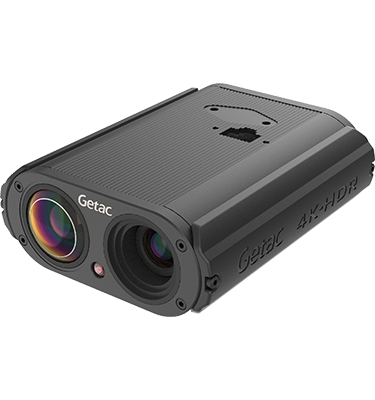

UHD Dual Lens Camera |
Video Output Format |
H.264 |
H.264 |
H.264, H.265 |
H.264, H.265 |
Video Output Resolution |
1920×1080 (1080P), 1280×720 (720P), 768x432 (D1) |
1920×1080 (1080P), 1280×720 (720P), 768x432 (D1) |
1920×1080 (1080P) |
3840x2160 (UltraHD), 2560x1440 (QuadHD), 1920×1080 (FHD) |
Video Output Frame Rate |
30 fps |
30 fps |
30 fps |
30 fps, 15fps |
Camera 1 |
-- |
-- |
Top - Camera 1 |
Left - Camera 1 |
FOV (Field of View) |
120° Horizontal / 146° Diagonal |
120° Horizontal / 146° Diagonal |
150° Diagonal / 133.2° Horizontal / 78.7° Vertical |
150° Diagonal / 133° Horizontal / 77° Vertical |
View Type |
Panoramic |
Panoramic |
Panoramic |
Panoramic |
LUX |
0.05lux @ Color |
0.05lux @ Color |
Color < 0.1 |
Color 0.03 |
Camera 2 |
-- |
-- |
Bottom - Camera 2 |
Right - Camera 2 |
FOV (Field of View) |
-- |
-- |
43° Diagonal / 37.3° Horizontal / 21.6° Vertical |
59° Diagonal / 53° Horizontal / 31° Vertical |
View Type |
-- |
-- |
Normal View |
Normal View for ALPR |
LUX |
-- |
-- |
Color < 0.1 |
Color 0.03, nighttime low-light recording |
Network |
Power over Ethernet (POE) |
Power over Ethernet (POE) |
-- |
Power over Ethernet (POE) |
Connectivity Interface |
Power over Ethernet (POE) |
Power over Ethernet (POE) |
Power over Ethernet (POE) |
POE, RJ45 |
Dimensions (W x D x H) |
46 x 48 x 46mm (1.81” x 1.89” x 1.81”) |
46 x 48 x 46mm (1.81” x 1.89” x 1.81”) |
55 x 55 x 64mm (2.3” x 2.3” x 2.5”) |
83 x 100 x 34 mm (3.27” x 3.94” x 1.34”) |
Operating Temperature |
-30° to 60 °C (-22° to 140° F) |
-30° to 60 °C (-22° to 140° F) |
-30° to 60 °C (-22° to 140° F) |
-30° to 60 °C (-22° to 140° F) |
Weight |
184g (0.41lbs) |
184g (0.41lbs) |
203.1g (0.45lbs) |
281g (0.62lbs) |
Rugged Features |
MIL-STD-810H |
MIL-STD-810H |
MIL-STD-810H |
MIL-STD-810H |
Mount Options |
Mounting Arm, Standard Mount |
Standard Mount |
Wind Shield Mount |
Mounting Arm |
Warranty |
3-year standard limited warranty.
Extended plans available. |
3-year standard limited warranty.
Extended plans available. |
3-year standard limited warranty.
Extended plans available. |
3-year standard limited warranty.
Extended plans available. |
