What is an IP rating?

IP (Ingress Protection) ratings are used to describe different levels of protection against dust, water, and foreign body intrusion for electrical enclosures. IP qualifications are defined in the international standard EN 60529 and aim to denote exact levels of waterproof or dust-proof casings. Typically, IP ratings are composed of two letters, “IP,” followed by two numbers.

What do the IP rating numbers mean?

First digit

The first digit of an IP rating denotes the level of protection from solid ingression, from things as large as hands, to particles as small as dust. The first digit can range from 0 (no protection) to 6 (complete protection from dust ingression) with the levels in between varying by particle size (protection from 50mm, 12.5mm, 2.5mm, 1.0mm particles).


Second digit

The second digit of an IP rating denotes the level of protection from liquid ingression, including liquid droplets, rain, spray, submersion and spills. It goes from 0 (no protection) to 9 (protection against continuous submersion in water within certain limits and conditions).


IP Rating example digit

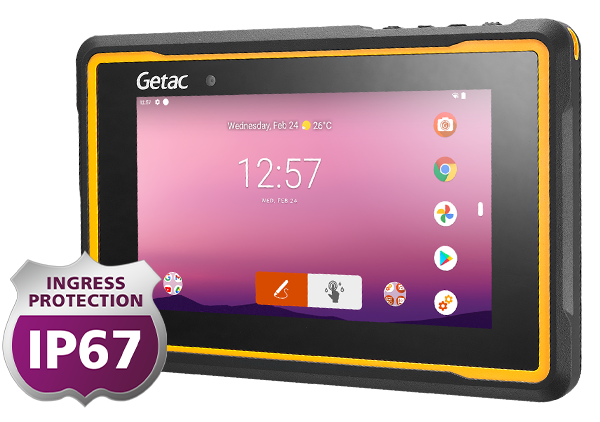

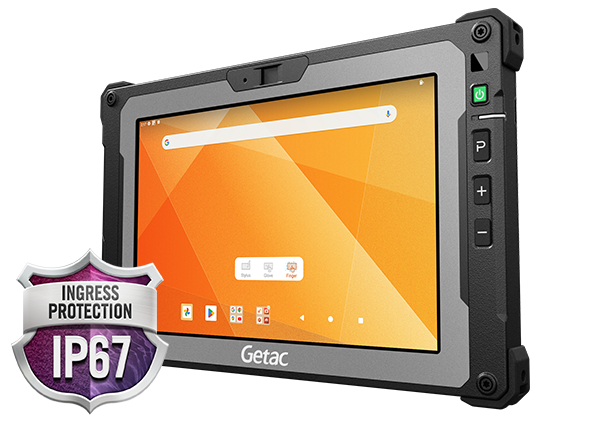

A certified IP67 tablet would be completely protected from dust and protected against temporary immersion in water up to 1 meter for 30 minutes. Getac offers solutions with highly rated intrusion and moisture protection, allowing professionals to work in challenging conditions when dust and moisture are present.


Digits marked 'X'

In IP ratings, X is sometimes used in place of a rating. ‘X’ is used to replace the variable if either the water resistance or dust resistance is unimportant or unknown. It does not signify that there is no protection for the rating it replaces (in which case it would be represented as 0). For example, a product rated IP20 is protected against solid objects greater than 12.5mm and is certified to have no liquid protection. A product rated IP2X is known and certified to be protected against solid objects greater than 12.5mm but the certified liquid resistance for that product is not available or known.


IP Rating Table

First DigitSymbolSolid Protection*Second DigitSymbolLiquid Protection*
0N/ANot Protected0N/ANot Protected
1Protected against solid objects greater than 50mm1Protected against vertically dripping water when the product is upright
2Protected against solid objects greater than 12.5mm2Protected against dripping water when tilted up to 15 degrees
3Protected against solid objects greater than 2.5mm3Protected against spraying water with the device tilted up to 60 degrees from its upright position
4Protected against solid objects greater than 1.0mm4Protected against splashing water from any direction
5Dust cannot ingress in an amount sufficient to affect the normal operation of the device5Protected against jetting water projected from a 6.3mm nozzle at 12.5 litres per minute
6Dust tight; dust cannot ingress6Protected against powerful jetting water (12.5 mm nozzle, 100 litres per minute)
7Protected against the effects of immersion in water up to 1m for 30 minutes

How are IP rated solutions tested

IP ratings are certified by independent testing companies. Waterproof tests are performed in a controlled environment with either a 12.5mm or 6.3mm nozzle. The water pressure is then altered and applied to certify various levels of water tightness.

Getac IP-Certified Rugged Computing Solutions

Getac offers a broad variety of rugged laptops and rugged tablets that are built with IP ratings from IP65 to IP67 to help professionals benefit from the advantages of a powerful computing solution in highly challenging environments. Filter and search through Getac’s IP rated offerings below to find the computing solution that best fits your needs.

Filter & Search

Product

Certifications

Industry

Search

A140
Tablets
IP65
B360
Laptops
IP66
B360 Pro
Laptops
IP66
F110
Tablets
IP66
K120
Tablets
IP66
T800
Tablets
IP65
UX10
Tablets
IP65
V110
Laptops
IP65
X500
Laptops
IP65
X500 Server
Laptops
IP65
ZX70
Tablets
IP67
