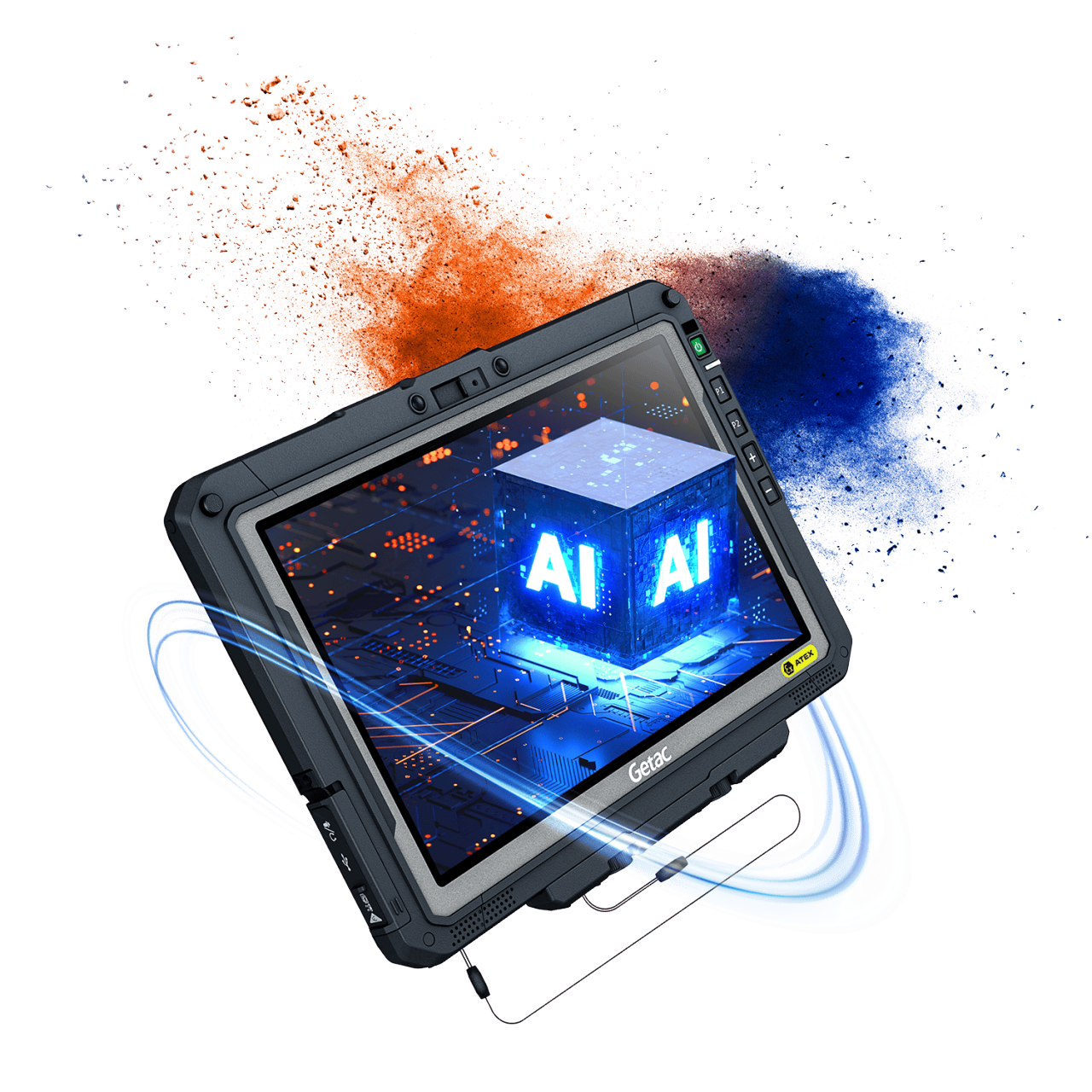

ATEX CERTIFIED FULLY RUGGED TABLET

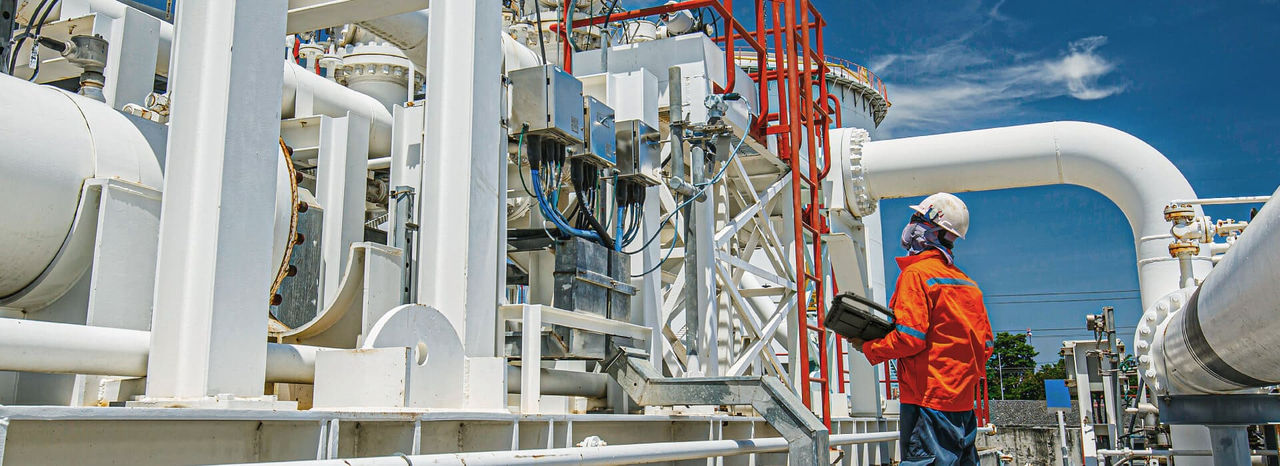

Certified for hazardous locations, the ZX10-EX fully rugged tablet offers ATEX and IECEx Zone 2/22 certification for use in potentially explosive atmospheres.
getac
getac
getac

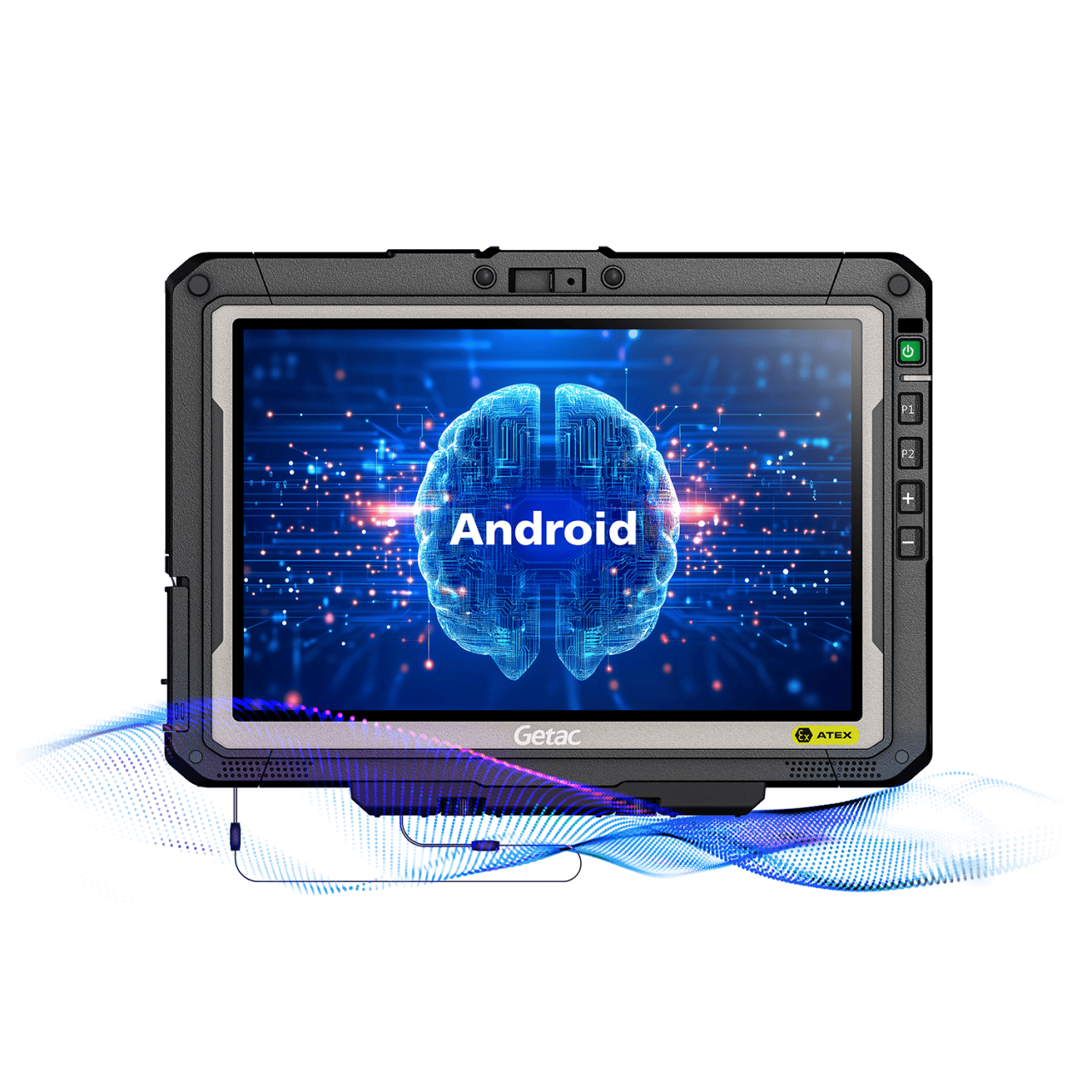

RUGGED ANDROID VERSATILITY

The Getac ZX10-EX is an AI-ready fully-rugged tablet to feature the Android 13 operating system, a highly-capable workday solution that combines the intuitive operation, power efficiency, and world of apps you expect with Android with a slim versatile profile well-suited to video conferencing, remote guidance, information capture, and online paperwork.

getac

FULL-SHIFT RELIABILITY

The ZX10-EX offers all-day performance with its standard full-shift battery life and optional higher-capacity batteries, allowing for seamless operations with dual hot-swappable batteries. Powered by the Qualcomm QCS6490 processor and featuring an integrated NPU, it efficiently handles AI applications, making it ideal for demanding tasks while minimizing power consumption.

BUILT FOR SEAMLESS COMMUNICATIONS

ZX10-EX’s dual SIM capabilities (one physical SIM + one eSIM) enable easy switching between different carrier networks, with optional 4G LTE or 5G Sub-6 with 4X4 MIMO delivering ultra-broadband cellular (WWAN) data transfer. Wi-Fi 6E and Bluetooth 5.2 round out its short-range wireless capabilities, with optional dedicated GPS (L1/L5) available for precise geolocation even in remote locations.
getac

SUPERB INTERACTIVE EXPERIENCE

The Getac 10” ZX10-EX enables superb video chat and remote guidance. The 8MP front and 16MP rear camera deliver excellent photos and video capture. Dual integrated microphones expertly filter out disruptive background noises like sirens and power tools. Meanwhile, the dual front speakers boost output volume, ensuring an outstanding interactive experience. Wi-Fi 6E and dual SIM design help keep you connected.
getac

CONVENIENT VERSATILITY

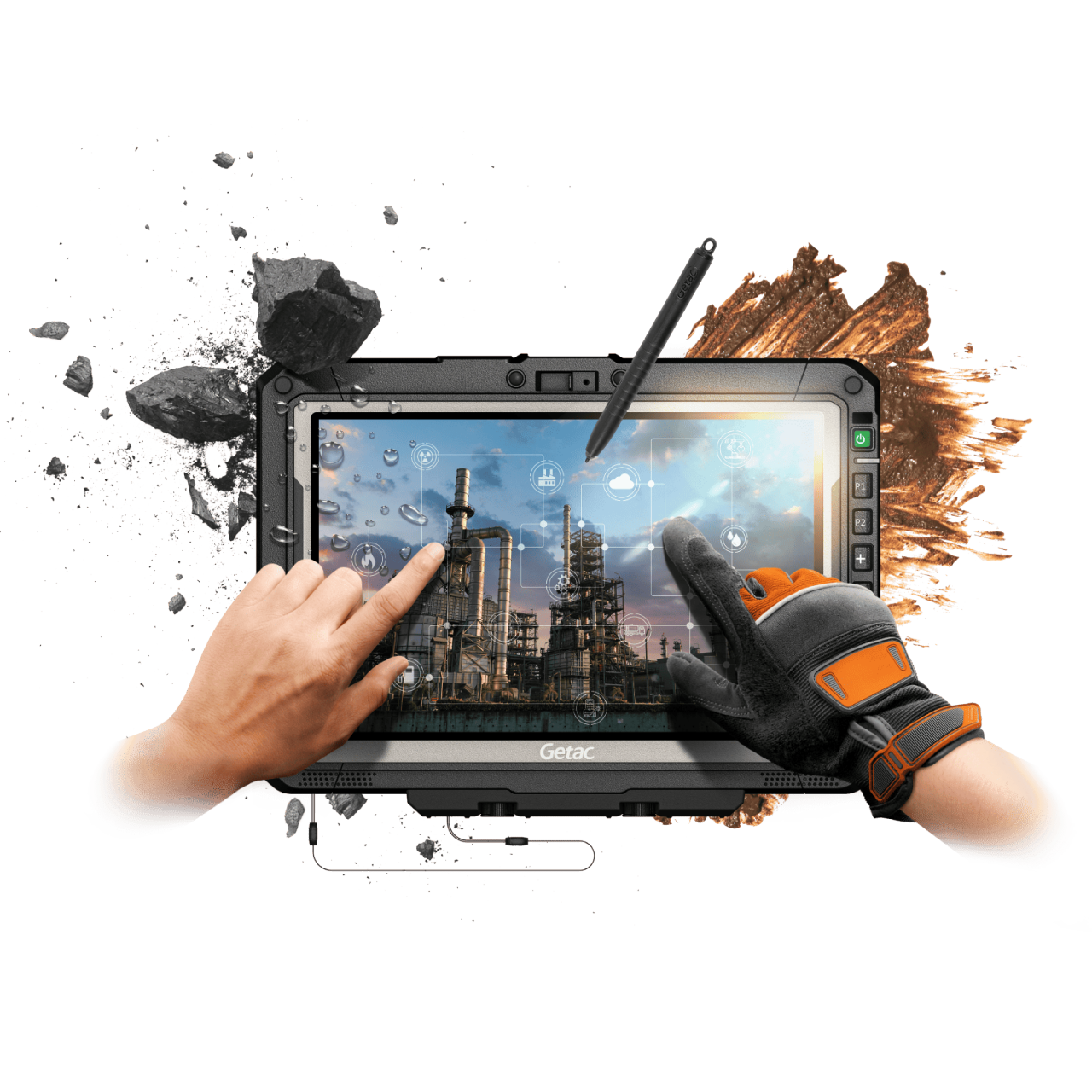

ZX10-EX helps you do more in the field in less time. A touchscreen powered by Getac’s proprietary LumiBond technology offers a sunlight-readable experience with superior color, contrast, and clarity. Read and sign documents in the cold, the rain, or under bright sunlight, via bare finger, gloved finger, or active digitizer pen. The active digitizer pen ensures precise input without accidental palm or finger touch errors, ideal for accurate data entry and signatures in any weather. Capture data, identify objects, and track assets via the optional NFC and optional integrated industrial-grade barcode reader.

getac
getac

OEMConfig

getac

Management

ENTERPRISE-GRADE MANAGEMENT

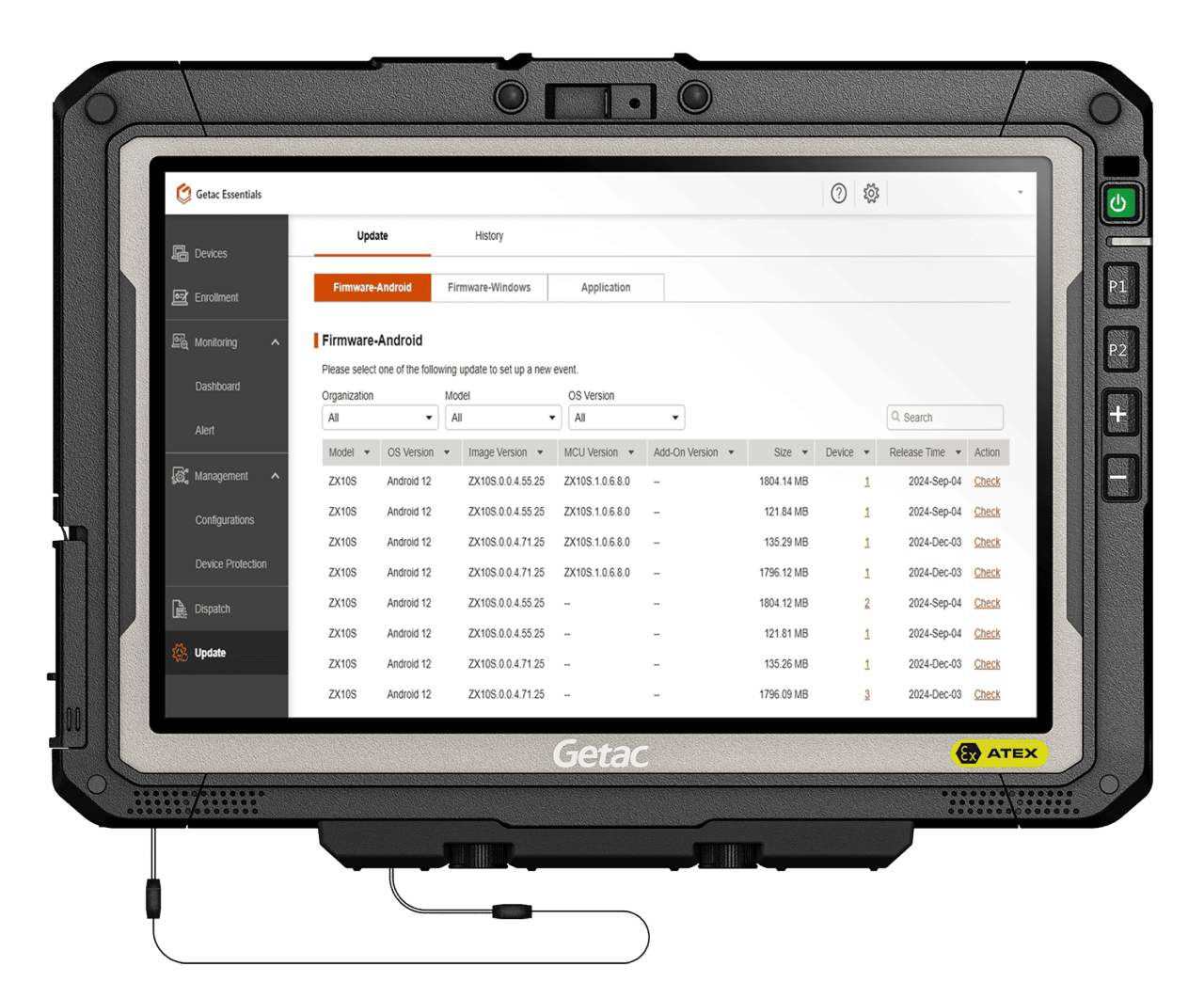

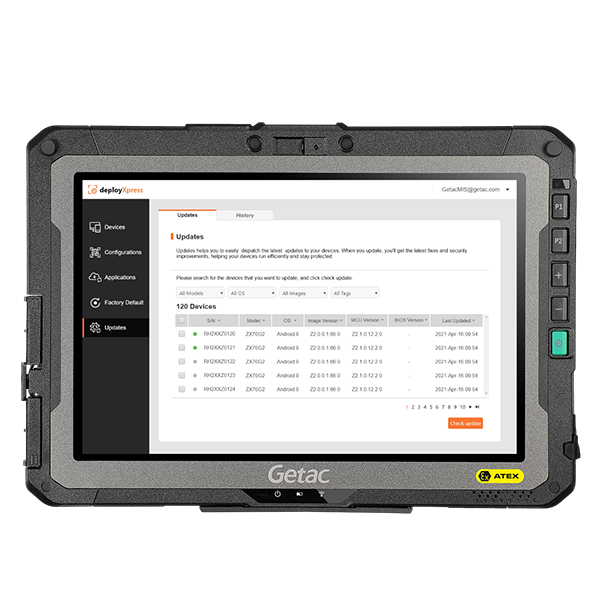

With ZX10-EX, IT administrators can save time through batch configuration of device and system settings across your deployment, including those for battery-charging, display, navigation, scanning, the quick settings panel, date and time, app update, and its four programmable buttons, via OEMConfig or Getac’s optional proprietary Getac Management software.

GETAC ZX10-EX FEATURES

Asset Management
AI-Ready
Asset Management
Dedicated GPS (L1/L5)
Asset Management
Dual SIM Design
(Nano-SIM 4FF and e-SIM)
Asset Management
Operational between -21 °C to +55 °C
(-5.8°F to 131°F)
Asset Management
4G LTE / 5G Sub-6 4X4 MIMO
Asset Management
High-Resolution Front and Rear Cameras

ZX10-EX TECHNICAL SPECIFICATIONS

Generation

G2

Operating System

Android™ 13.0

Mobile Computing Platform

Qualcomm® QCS6490, Octa-core 1.9GHz
Max. 2.7GHz

Graphics

Qualcomm® Adreno™ 643 GPU

NPU

Qualcomm® Hexagon™ Processor,
up to 13 TOPS with 6th Qualcomm AI Engine

Display

10.1" TFT LCD WUXGA (1920 x 1200)
Anti-static protection film
1000 nits LumiBond display with Getac sunlight
readable technology

Storage & Memory

8GB LPDDR5

128GB UFS
Optional: 256GB UFS

Keyboard

Power button
4 tablet programmable buttons

Pointing Device

Touchscreen
- Dual mode touchscreen (multi-touch and digitizer)

Expansion Slot

Optional: Smart card reader
Optional: 1D/2D imager barcode reader
Optional: NFC i

I/O Interface

8MP webcam x 1
16MP auto focus rear camera x 1
Audio in/out combo x 1
USB 2.0 (Host) x 1
USB 3.2 Gen 1 Type-C w/ DP & PD x 1
MicroSD x 1
Optional: SIM card slot x 1 (Nano-SIM, 4FF)

Communication Interface

Wi-Fi 6E 802.11ax
Bluetooth (v5.2) ii
Optional: 4G LTE mobile broadband iii
Optional: 5G Sub-6 iii
Optional: Dual SIM (Nano-SIM 4FF and e-SIM) iii
Optional: Dedicated L1/L5 GPS iv

Security Feature

Kensington lock
Optional: Smart card reader
Optional: NFC i

Power

Li-ion battery (3.88V, typical 4990mAh; min. 4870mAh)
+ Battery bay cover

Dimension (W x D x H) & Weight

275 x 204 x 20.05mm (10.83 " x 8.03" x 0.79")
1.05kg (2.31lbs) v

Rugged Feature

MIL-STD-810H certified
IP66 certified
Vibration & 6 feet (1.8m) drop resistant vi
ATEX & IECEx certified

Environmental Specification

Temperature vii:
- Operating: -21°C to 55°C / -5.8°F to 131°F
- Storage: -51°C to 71°C / -60°F to 160°F
Humidity:
- 95% RH, non-condensing

Explosion Protection

ATEX/IECEx Zone 2/22
Ex II 3G Ex ic op is IIC T4 Gc
Ex II 3D Ex ic op is IIIB T130°C Dc

Pre-installed Software

Getac Camera
Getac Input Method
Getac Driving Safety Utility (trial version)
Getac settings and Google applications (Search, Chrome,
Gmail, Maps, YouTube, Play, Drive, YouTube music,
Google TV, Meet and photos)
Getac Log Tool
Getac Diagnostic
Getac Monitoring (trial version) agent/SDK
Getac Management (trial version) agent/SDK

Optional software

Getac Driving Safety Utility
Getac Monitoring
Getac Management
Getac OEMConfig

Accessories

Battery (3.88V, typical 4990mAh; min. 4870mAh)

Optional:
Carry bag
Battery (3.88V, typical 4990mAh; min. 4870mAh)
High capacity battery
(3.88V, typical 9980mAh; min. 9740mAh)
Multi-Bay charger (Dual-Bay)
Multi-Bay charger (Eight-Bay)
65W USB-C AC adapter
Digitizer pen with tether
Anti-static protection film
Hard handle viii
Shoulder strap (2-point)
Shoulder harness (4-point; handsfree)
Rotating hand strap with kickstand

Bumper-to-Bumper Warranty

Accidents can take your equipment out of
service when you least expect it, especially in a
rugged environment, which can cause costly
equipment downtime.
That is why Getac has introduced accidental
damage as standard under our Bumper-toBumper
warranty, to help minimize your
enterprise IT costs. Bumper-to-Bumper is your
hassle-free guarantee.
That means you can depend on us to have your
unit back in service within days

Standard
3 years Bumper-to-Bumper

    • 13.56MHz contactless NFC (ISO 15693, 14443 A/B, Mifare and FeliCa™ compliant).
    • Bluetooth performance and connectable distance may be subject to interference with the environments and performance on client devices, users may be able to reduce effects of interference by minimizing the number of active Bluetooth wireless devices that is operating in the area.
    • One physical SIM card slot and one eSIM. Network service may vary depending on local telecommunication providers.
    • Support GPS, GLONASS, Galileo and BeiDou. Only available in the US, UK, EU, Australia and New Zealand.
    • Weight and dimensions vary from configurations and optional accessories; optional high-capacity batteries add approx. 7.65mm (H), 140g.
    • Drop test results vary from configurations and optional accessories.
    • When using AC power, the device operates in temperatures as low as -29°C (-20°F), as tested by an independent third-party laboratory following MIL-STD-810H standards. For battery-only operation, it functions down to -15°C (5°F) with one standard battery, -21°C (-6°F) with two standard batteries, and -29°C (-20°F) with two high-capacity batteries.
    • Factory option. Not user swappable.

Information provided herewith is for reference only, available specification shall be subjected to quotation by request.

ZX10-EX ACCESSORIES

CARRY BAG
EXTERNAL DUAL BAY MAIN BATTERY CHARGER
MULTI-BAY BATTERY CHARGER EIGHT BAY
HIGH-CAPACITY BATTERY 9980MAH
DIGITIZER PEN WITH TETHER
ANTI-STATIC SCREEN PROTECTION FILM
SHOULDER HARNESS 4-POINT
SHOULDER STRAP 2-POINT
65W USB-C AC ADAPTER
STANDARD BATTERY 4990MAH
ROTATING HAND STRAP & KICKSTAND

Getac Accessory Warranty - 1 year
