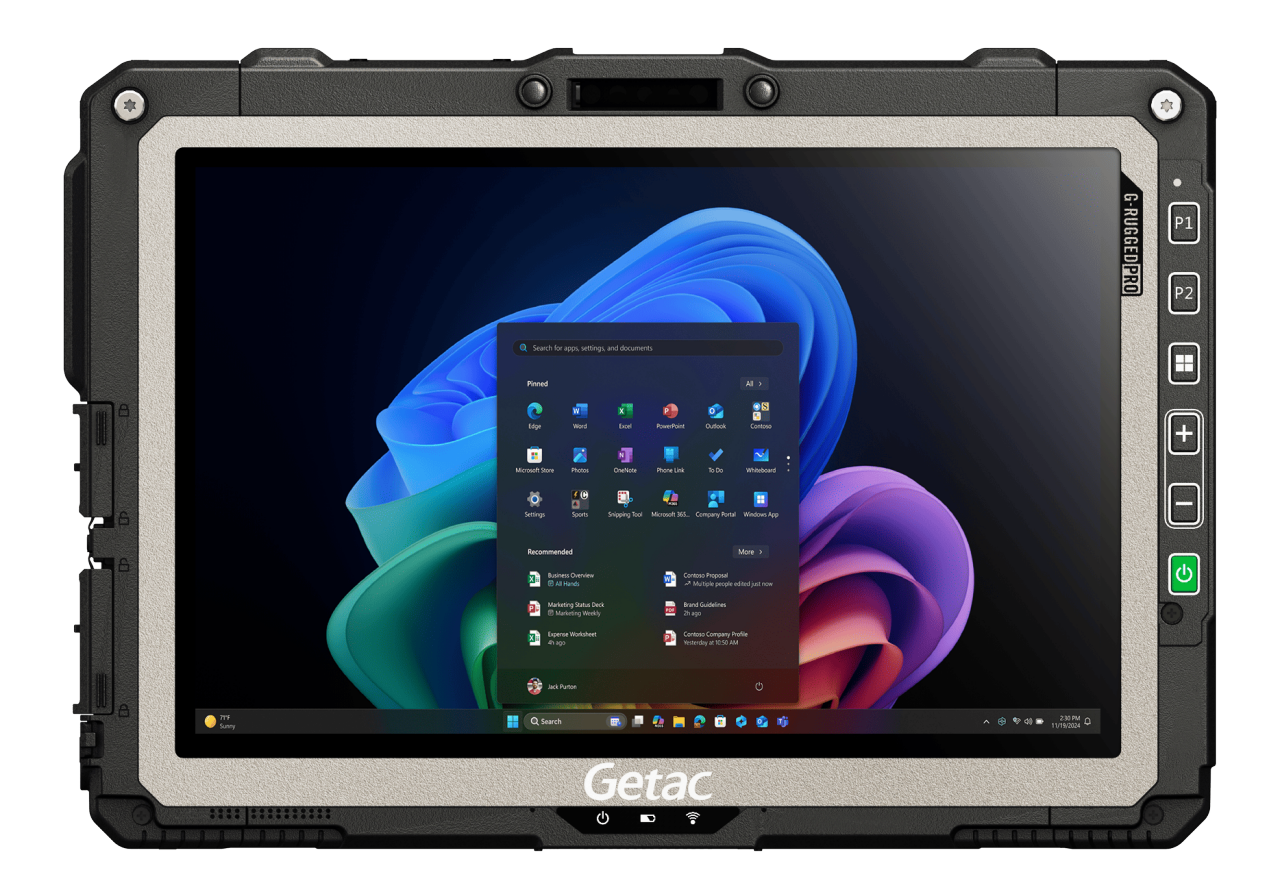

Getac UX10

Fully rugged computing power, anywhere you need it

A versatile and portable tablet fully ready to deliver digital transformation in environments where rugged performance is required.


EXCEPTIONALLY ADAPTABLE RUGGED TABLET

Fast, tough, and adaptable, the UX10 G-RuggedPro™ tablet offers an exceptionally rugged computing experience. Featuring a 12th Generation Intel® i7/i5 processor and Thunderbolt™ 4, the IP66-certified UX10 delivers great performance with uncompromising security and durability, while an optional hard handle lets you conveniently carry it wherever it is needed. For total security in authenticating users, the UX10 has an optional integrated fingerprint reader, smart card reader, magnetic stripe reader, RFID reader, and Windows Hello face-authentication camera, while its detachable keyboard with retractable hard handle further enhances worker productivity.


Industry 4.0, powered by Intel

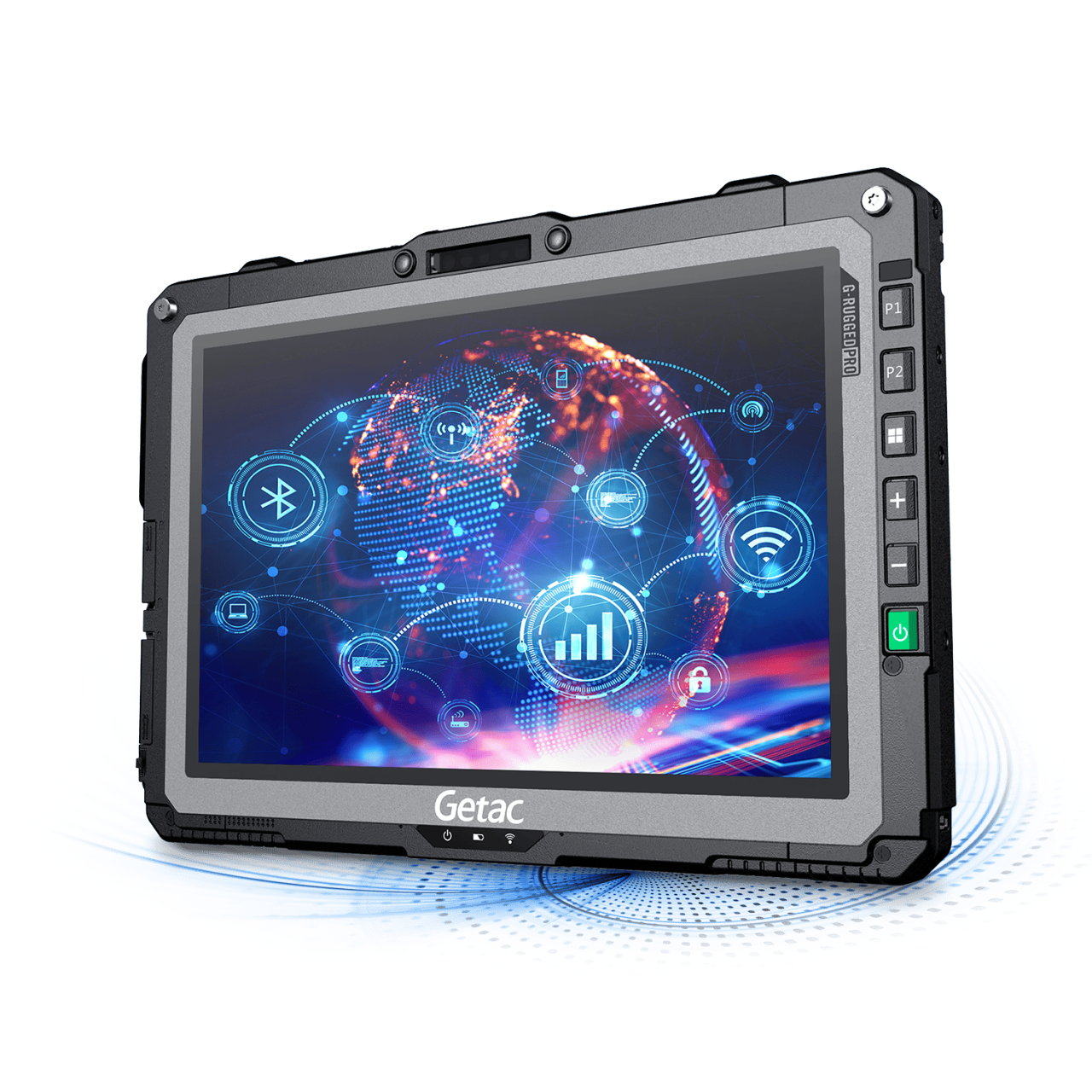

THE CONNECTED TABLET

Supporting seamless digital transformation, the UX10 offers digital connectivity through Bluetooth 5.3, Wi-Fi 6E AX211, and optional 4G LTE, ensuring a stable connection even in highly congested environments. An optional RS232 port supports legacy equipment, and an optional RFID reader allows information feedback into the management system. All these functionalities ensure that the UX10 stays connected wherever you need it, whether indoors or outdoors.

THE ‘ALWAYS-ON’ TABLET

In a world where devices must work 24/7, 365 days a year, power-up continuity is essential, and for portable devices, that means a focus on battery configuration. The UX10 offers a range of battery configurations and options, including an optional high-capacity battery and an optional bridge battery that ensures a ‘hot swap’ capability. In effect, you need never power-down the UX10*, making it an ideal solution if you need a device that can be pooled among workers or utilised across multiple work shifts.

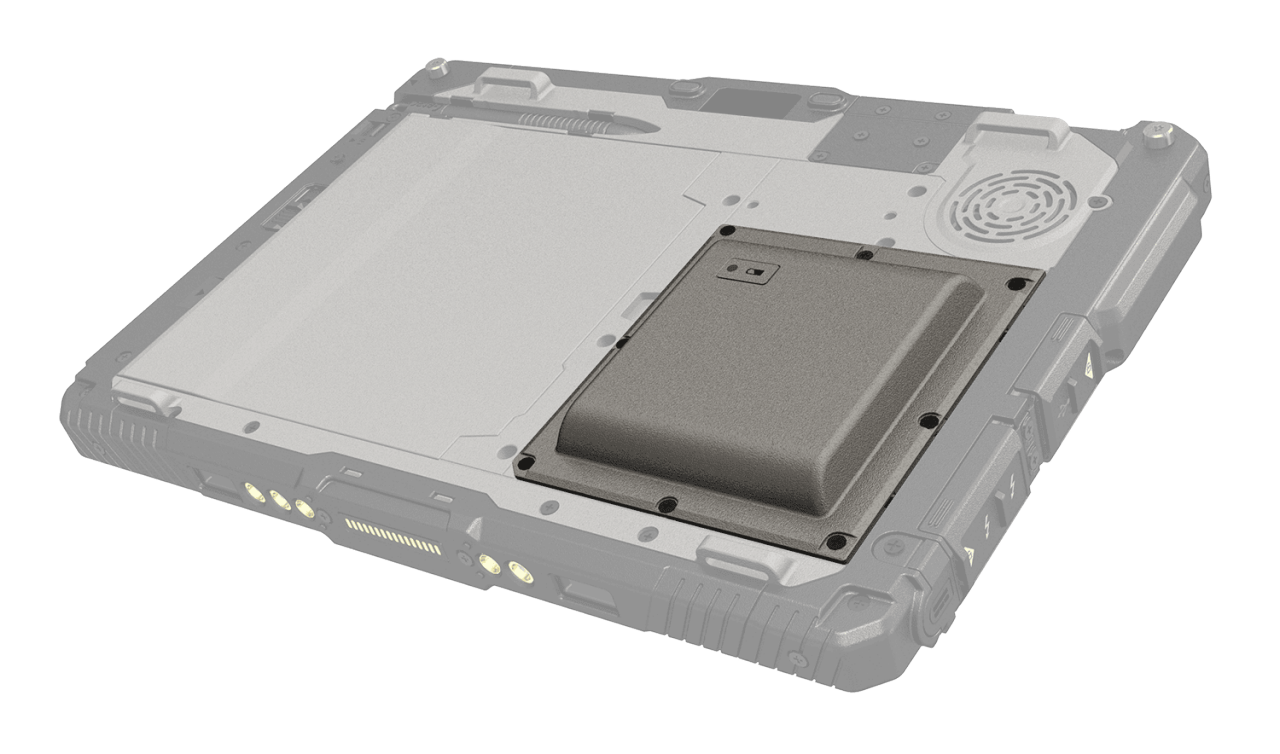

*The optional bridge battery can keep the tablet alive for roughly 2 minutes without any main battery in the bay, providing users enough time to swap a fresh battery without ever shutting down their devices.

THE USABLE-IN-ALL CONDITIONS TABLET

Paired with its superior drop resistance and temperature tolerance, the UX10’s LumiBond® screen ensures usability in all conditions. 1000 nits of brightness make the display readable even in sunlight, while its rain and glove touch capability guarantee visibility and productivity even in many extreme conditions.

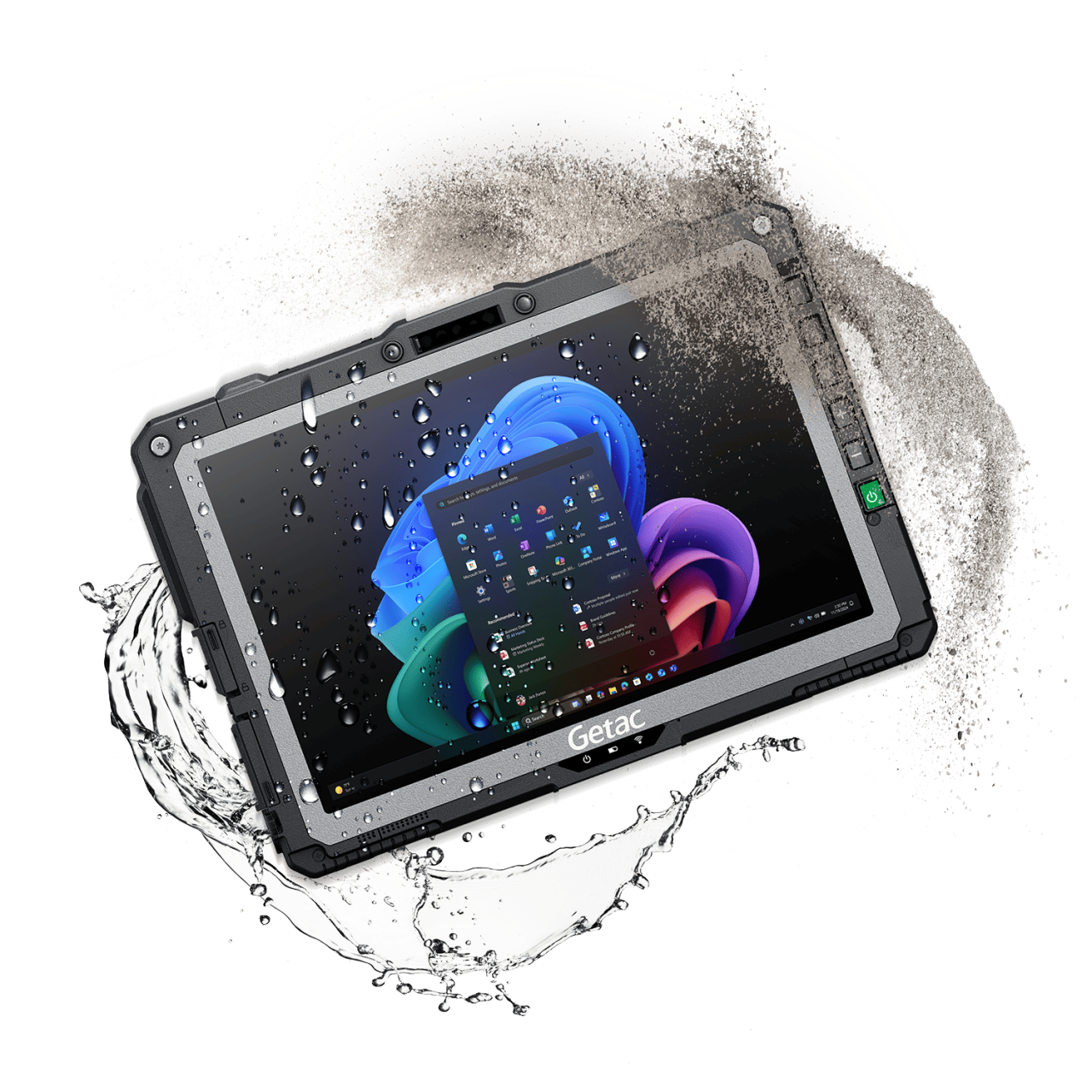

THE EVEN MORE RUGGED TABLET

The UX10 is a new level of ruggedness, certified with the IP66 and military-grade MIL-STD 810H standards. It resists water, dust, salt, vibration, and will withstand temperatures from -29°C to +63°C (-20°F to 145°F), and a 6-foot (1.8m) drop while operating.

DESIGNED FOR INFECTION PREVENTION

Designed with Infection prevention in mind, the UX10 is also available with sealed buttons allowing frequent cleaning to support infection prevention of medical healthcare professionals.

SUCCESS STORIES

  • The Kreis (district) of Borken in Germany carries out around 22,000 rescue missions per year, including 16,000 ambulance transports and more than 5,000 emergency doctor missions. The fully rugged UX10-IP tablet impresses them not only with its speed and extreme durability, which enables reliable work, (even after drops or other heavy impacts), but also with the performance of its batteries, which can be constantly charged via Havis docking stations. When away from the docking stations, the device’s long battery life guarantees stable, reliable operation over long periods of time, even when the units are heavily used. Meanwhile, when calls are transmitted to an ambulance via the control centre, the device’s robust connectivity allows the response team to receive all the recorded information and patient data directly on their UX10-IP devices. As one of the district’s emergency responders put it, “The device is incredibly practical, the batteries last longer than a day. It runs even faster and smoother than previous devices and is therefore ideal for our purposes. Every time we go out on a call, we notice that the UX10-IP is even more powerful and allows faster data transfers for our emergency services.” With the fully robust Getac UX10-IP tablet, the district’s emergency medical personnel are now optimally equipped for patient care and can manage all the mission-critical data required with maximal efficiency. In short, the UX10-IP is helping the district set a new course for the digital future of its rescue services.
    Kreis Borken: Ensuring Robust Reliability for Life-Saving Missions with Getac UX10-IP
  • The benefits of Digital China and Getac’s innovative partnership have already proven substantial, including inbound and outbound time reductions of 150 minutes and 60 minutes, respectively, average inbound/outbound documentation reductions of 70%, and near-100% inbound rate accuracy. “Providing our customers with comprehensive smart solutions is our business vision,” noted the general manager of Digital China’s Internet of Things department, “and Getac’s rugged UX10, F110, and T800 tablets deliver exactly what they need. Not only do they offer extraordinary durability and reliability, they also integrate perfectly with our warehouse logistics software and radio frequency identification (RFID) scanning solutions, guaranteeing exceptional performance for our customers.” In short, Digital China’s collaboration with Getac has already delivered dramatic benefits, addressing a host of complicated real-world warehouse pain points to enable Digital China to provide even better service to their millions of customers.
    Getac’s UX10 Rugged Tablets Power Digital China’s State-of-the-Art Warehouse Automation Solutions

Getac UX10 Features

Getac_Icon_Intel Core
12th Gen Intel® Core™ Processor
T1-V110_UX10-RAM_Storage
8GB RAM/256 GB Storage
Getac_Icon_T1-Bluetooth
Wi-Fi 6E AX211 & Bluetooth 5.3
Getac_Icon_Thunderbolt
Thunderbolt™ 4
T1-V110_UX10-Dedicated GPS
Dedicated GPS
T1-V110_UX10-Brilliant Display
Brilliant Display

Beyond Expectations.

Our new Bumper-to-Bumper fully rugged warranties go beyond the expected to protect your productivity.

3-Year Warranty.

Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime. That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs. Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days.

Standard 3 years Bumper-to-Bumper

For full details of the warranty protection, see the Terms and Conditions.

*Images shown are for reference only. Actual product may vary due to product enhancement.

UX10 TECHNICAL SPECIFICATIONS

Download PDF
Generation

G3

Operating System

Windows 11 Pro

Mobile Computing Platform

Intel® Core™ i5-1235U Processor
Max. 4.4GHz with Intel® Turbo Boost Technology
- 12MB Intel® Smart Cache

Platform options:
Intel® Core™ i5-1245U vPro® Processor
Max. 4.4GHz with Intel® Turbo Boost Technology
- 12MB Intel® Smart Cache

Intel® Core™ i7-1255U Processor
Max. 4.7GHz with Intel® Turbo Boost Technology
- 12MB Intel® Smart Cache

Intel® Core™ i7-1265U vPro® Processor
Max. 4.8GHz with Intel® Turbo Boost Technology
- 12MB Intel® Smart Cache

Intel® Pentium™ 8505 Processor
Max. 4.4GHz with Intel® Turbo Boost Technology
- 8MB Intel® Smart Cache

VGA Controller

Intel® UHD Graphics

Display

10.1" Wide Viewing Angle TFT LCD WUXGA (1920 x 1200)
Protection film
1,000 nits LumiBond display with Getac sunlight readable technology
Capacitive multi-touch screen

Storage & Memory

8GB DDR4
Optional: 16GB / 32GB DDR4

256GB PCIe NVMe SSD
Optional: 512GB / 1TB PCIe NVMe SSD

Keyboard

Power button
5 tablet programmable buttons

Pointing Device

Touchscreen
- Capacitive multi-touch screen
- Optional: Dual mode touchscreen (multi-touch and digitizer)

Expansion Slots

Optional (top side): 1D/2D imager barcode reader, or Serial port, or USB 3.2 Gen 1 Type-A port, or LAN port (RJ45) , or microSD or HF RFID reader i, or HDMI 2.0.ii
Optional (right side): LAN port (RJ45) or Fingerprint readeriii
Optional (back side): Smart card reader, or Bridge battery, or Bridge battery + Smart card reader iv

I/O Interface

FHD webcam x 1 v
8M pixels auto focus rear camera x 1
Audio in/out combo x 1
DC in Jack x 1
USB 3.2 Gen 2 Type-A x 1
Docking connector x 1
Thunderbolt™ 4 Type-C x 1
Optional: Windows Hello face-authentication camera (front-facing) x 1 v
Optional: RF antenna pass-through for GPS, WWAN and WLAN

Communication Interface

Optional: 10/100/1000 base-T Ethernet
Intel® Wi-Fi 6E AX211, 802.11ax
Bluetooth (v5.3) vi
Optional: Dedicated GPS with L1/L5 ix
Optional: 4G LTE mobile broadband with integrated GPS vii, viii, ix, x
Optional: 5G Sub-6 with integrated GPS vii, viii, ix
Dual SIM (Micro-SIM 3FF and e-SIM) vii, viii

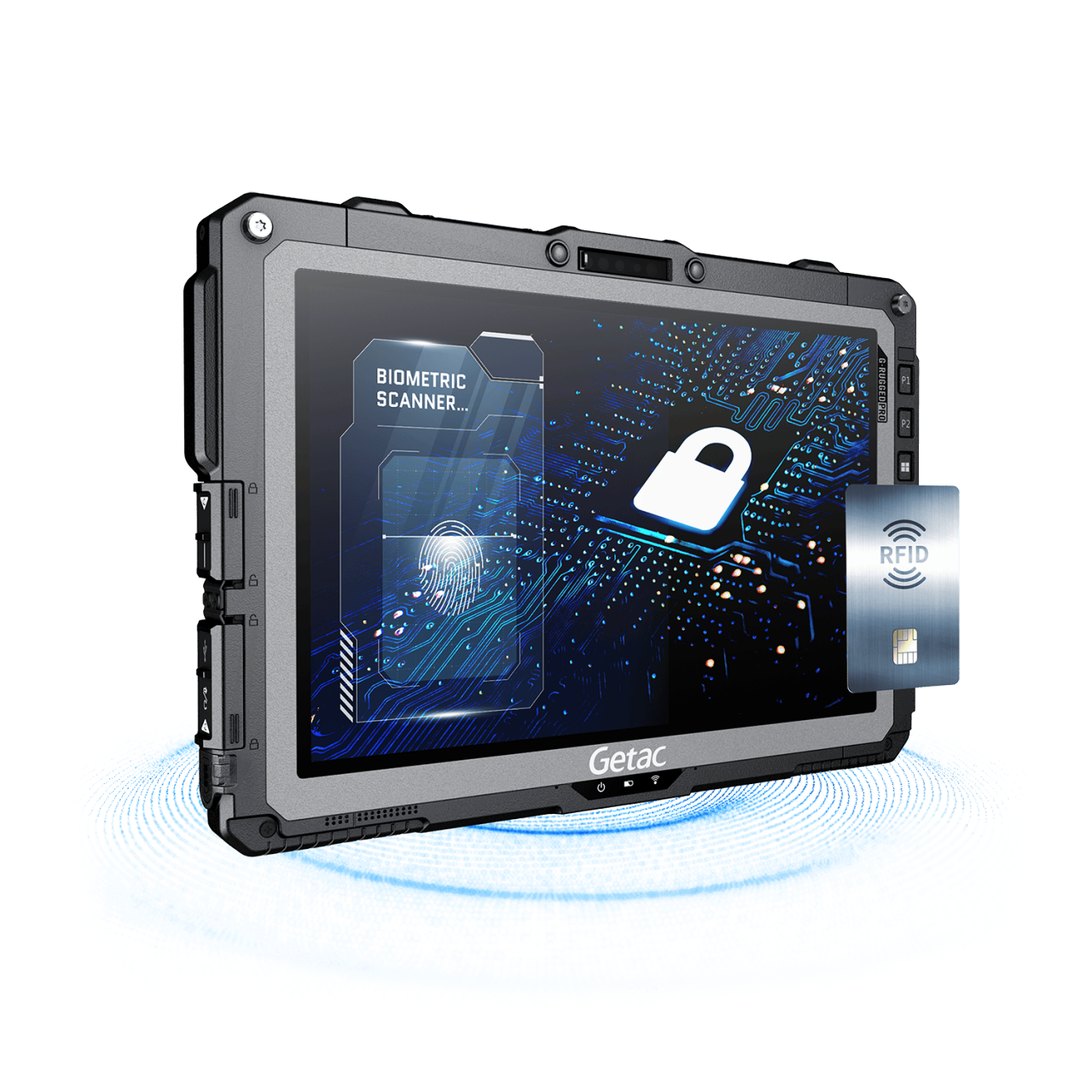

Security Features

TPM 2.0
Kensington lock
Optional: Intel® vPro® Technology
Optional: HF RFID reader i, ii
Optional: Fingerprint reader iii
Optional: Smart card reader iv
Optional: Windows Hello face-authentication camera (front-facing) v

Power

AC adapter (65W, 100-240VAC, 50/60 Hz)
Li-ion battery (11.1V, typical 4200mAh; min. 4080mAh) x 1
Optional: High capacity Li-ion battery (10.8V, 9240mAh) x 1
Optional: Bridge battery iv

Dimension (W x D x H) & Weight

279 x 194.5 x 23.5mm (10.98" x 7.65" x 0.92") xi
1.22kg (2.68lbs) xi

Rugged Feature

MIL-STD-810H certified
IP66 certified
MIL-STD-461G certified xii
Vibration & 6ft (1.8m) drop resistant xiii
Optional: ANSI/UL 121201, CSA C22.2 NO. 213 (Class I, Division 2, Groups A, B, C, D) xiv

Environmental Specification

Temperature xv:
- Operating: -29°C to 63°C / -20°F to 145°F
- Storage: -51°C to 71°C / -60°F to 160°F
Humidity:
- 95% RH, non-condensing

Pre-installed Software

Getac Utility
Getac Camera
Getac Geolocation
Getac Barcode Manager xvi
Getac Driving Safety Utility (trial version)
Getac KeyWedge Barcode Reader Utility (trial version)
Optional: Absolute Persistence®

Optional Software

Getac Driving Safety Utility
Getac KeyWedge Barcode Reader Utility
Getac Device Monitoring System (GDMS)
Getac VGPS Utility xvii

Accessories

Battery (11.1V, typical 4200mAh; min. 4080mAh)
AC adapter (65W, 100-240VAC)
Capacitive stylus with tether

Optional:
Carry bag
Folio case
Battery (11.1V, typical 4200mAh; min. 4080mAh)
High capacity Li-ion battery (10.8V, 9240 mAh)
Multi-Bay charger (Dual-Bay)
Multi-Bay charger (Eight-Bay)
AC adapter (65W, 100-240VAC)
AC adapter (90W, 100-240VAC)
MIL-STD-461 AC adapter (90W, 100-240VAC)
DC-DC vehicle adapter (120W, 11-32VDC)
Digitizer pen
Capacitive stylus with tether
Protection film
Hard handle
Rotating hand strap with kickstand
Shoulder strap (2-point)

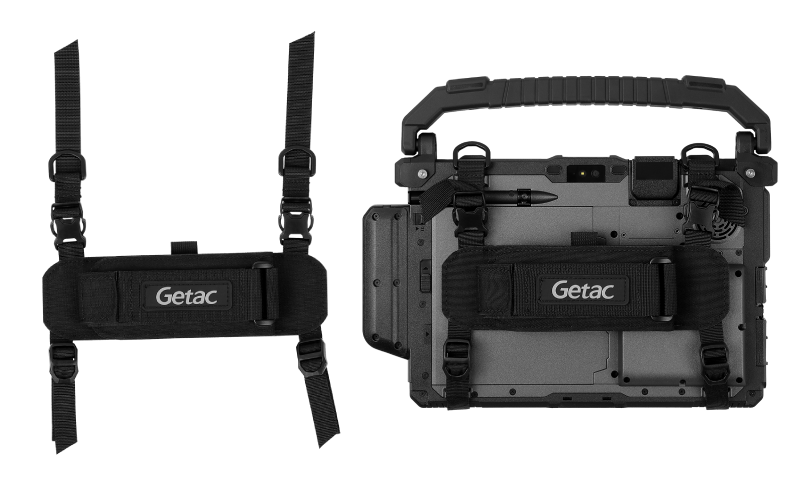

Shoulder harness (4-point; handsfree)
Detachable keyboard
Vehicle cradle xviii
Keyboard dock
Vehicle dock xviii
Office dock
100W Type-C adapter

Bumper-to-Bumper warranty

Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime.
That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs.
Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days.

Standard
3 years Bumper-to-Bumper

  1. 13.56MHz contactless HF RFID reader (ISO 15693, 14443 A/B, Mifare and FeliCa™ compliant).
  2. 1D/2D imager barcode reader, Serial port, USB 3.2 Gen 1 Type-A port, LAN port (RJ45), HF RFID reader, MicroSD and HDMI 2.0 are mutually exclusive options.
  3. Fingerprint reader and LAN Port are mutually exclusive options.
  4. Smart card reader, Bridge battery and Bridge battery + Smart card reader are mutually exclusive options.
  5. FHD webcam and optional Windows Hello face-authentication camera (front-facing) are mutually exclusive options.
  6. Bluetooth performance and connectable distance may be subject to interference with the environments and performance on client devices, users may be able to reduce effects of interference by minimizing the number of active Bluetooth wireless devices that is operating in the area.
  7. One physical SIM card slot and one eSIM.
  8. Network service may vary depending on local telecommunication providers.
  9. Supports GPS, GLONASS, Galileo, BeiDou and QZSS.
  10. Units with 4G LTE option come with an embedded SIM card slot.
  11. Weight and dimensions vary from configurations and optional accessories.
  12. MIL-STD-461 90W AC adapter sold separately.
  13. Drop test results vary from configurations and optional accessories.
  14. Available with limited configurations and environment conditions.
  15. Tested by an independent third-party test lab following MIL-STD-810H.
  16. Available when barcode reader option is selected.
  17. Models require either embedded or standalone GPS module.
  18. Gamber Johnson and Havis vehicle docks are e-mark certified.

Information provided herewith is for reference only, available specification shall be subjected to quotation by request.

UX10 Accessories


100W Type-C AC adapter
120W DC-DC Vehicle Adapter
65W AC Adapter with Power Cord
90W AC Adapter
90W MIL-STD-461 AC Adapter
CAPACITIVE HARD TIP STYLUS & TETHER
Carry Bag
Detachable Keyboard
Digitizer Pen
DUAL BAY BATTERY CHARGER
Folio Case
High Capacity Battery 9240 mAh (1-pack)
Keyboard Dock
Multi-bay Battery Charger Eight Bay
OFFICE DOCK WITH AC ADAPTER
Rotating Hand Strap with Kickstand

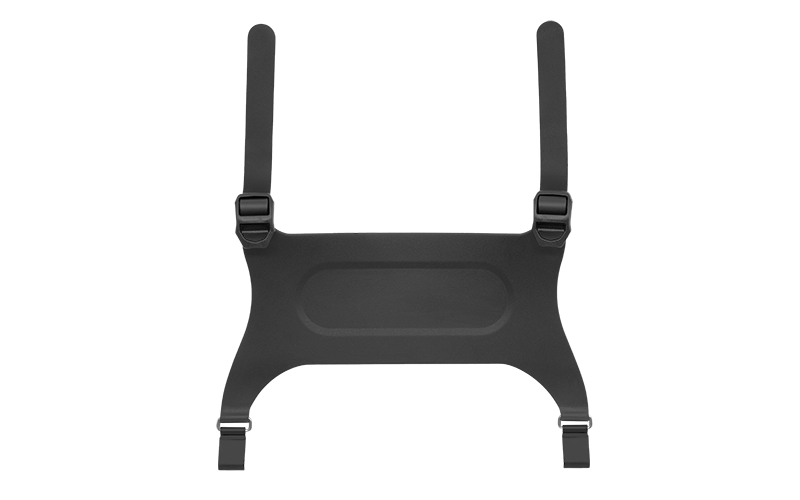

RUBBER HAND STRAP
SCREEN PROTECTION FILM MATTE FINISH
Shoulder Harness 4-point
Shoulder Strap 2-point
Standard Battery 4200 mAh (1-pack)


Getac Accessory Warranty - 1 year
Third-party Partner Accessory Warranty - 3 years
