Getac X500 Mobile Server

Rugged RAID server. Notebook portability.

The briefcase-size Getac X500 rugged mobile server is a commercial off-the-shelf, high-performance mobile rugged server designed for quick deployment and reliability.

FULLY RUGGED. NOTEBOOK PORTABILITY.

Our commercial off-the-shelf (COTS) X500 Rugged Server combines the advanced performance and rugged setup of our X500 ultra rugged computer while also providing quick deployment and high portability. This robust server can be easily transported into emergency, disaster, and temporary set-up environments all the while delivering leading connectivity.

SAFE STORAGE FOR 5TB OF DATA

The Getac X500 Rugged Mobile Server features a hardware RAID (redundant array of independent disks) controller designed to improve performance and protect your data. With up to 5 terabytes of storage, the X500 Mobile Server can be configured for RAID level 0, 1, or 5 to meet your team’s specific needs.

Windows Server 2016

The X500 Rugged Mobile Server is pre-loaded with Windows Server 2016, providing powerful and flexible server application management.

Quad-Core Processing

A mobile server would be useless without the processing power to back it up. The X500 Server meets this demand with a state-of-the-art 3.0GHz Intel® Xeon® quad core processor outfitted with 8MB Intel® Smart Cache and 32GB of RAM that is expandable up to 64GB of RAM. The X500 Rugged Mobile Server was built to handle event the most complex processing tasks.

Compact and Mobile

Self-contained, the X500 Mobile Server was designed to be the ultimate portable server that can be transported and turned on with the same simplicity as a standard notebook. At 16.1 x 11.4 x 4.6 inches in size, the X500 Rugged Server can be easily carried and deployed, maximizing uptime and efficiency.

Dual Ethernet Built-In

Every X500 Server features dual Ethernet ports for a dependable connection wherever your team sets up. Plus, independent Ethernet controllers allows clustering for high availability, load balancing and fault tolerance during your work.

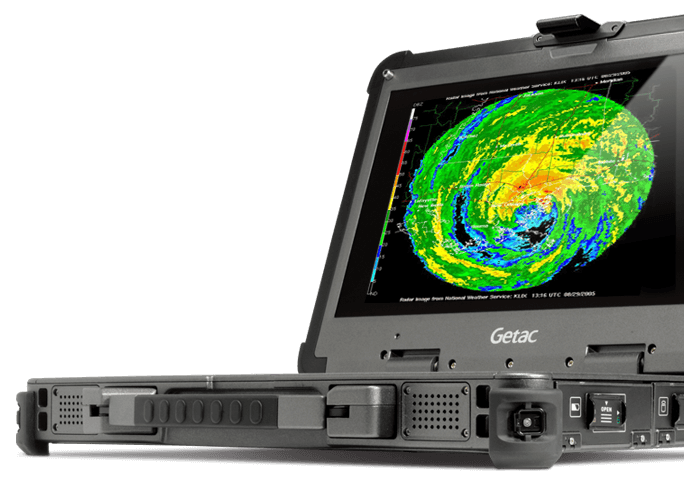

Large Sunlight Readable Full HD Display

In the field, a readable display can make or break the productivity of a team. The Getac X500 Rugged Server features a massive 15.6 inch Full HD 1080p widescreen display powered by an NVIDIA® GeForce® GTX1050 4GB discrete graphic controller delivering crystal-clear high definition display with incredible responsiveness.

Every X500 Rugged Server also features an advanced QuadraClear® display. Getac's QuadraClear solution reduces the sunlight's reflectivity and provides a more effective contrast rate than other displays, while still maintaining the battery life you need in the field.

The QuadraClear display is powered by LEDs that provide an energy efficient display that is mercury-free, durable and consistent in brightness over time.

Built To Survive™

Only Getac manufacturers rugged devices down to the chassis. Built from high quality magnesium alloy, the X500 Rugged Mobile Server features four main casings specifically engineered to protect against drops, shocks, spills, vibration and more. The sealed design of the X500 Rugged Server also protects it against dust and moisture, allowing your team to access powerful data storage even in dangerous environments.

Getac X500 Server Features

X500 Server
Core Manufacturer

Getac is one of the largest manufacturers of magnesium alloy computer chassis in the world. Our expertise in manufacturing the housing itself provides key insight into how to make them stronger.

X500 Server
Sealed Ports and Doors

Sealed doors and ports provide an ingress protection against dust, moisture and water, allowing the X500 to be certified to an IP65 rating.

Industry's Best 5-Year Warranty

Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime. That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs. Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days.

Standard 5 years Bumper-to-Bumper

For full details of the warranty protection, see the Terms and Conditions.

*Images shown are for reference only. Actual product may vary due to product enhancement.

X500 Server Technical Specifications


Operating SystemWindows Server 2019
Mobile Computing PlatformIntel® Xeon® Processor E3-1505M v6 3.0GHz,
Max. 4.0GHz
- 8MB Intel® Smart Cache
VGA ControllerIntel® HD Graphics P630
Optional: NVIDIA® GeForce® GTX1050 4GB discrete graphics controller
Optional: NVIDIA® Quadro® P2000 4GB discrete graphics controller
Display 15.6" TFT LCD FHD (1920 x 1080)
Protection film
1,000 nits QuadraClear® sunlight readable display
Storage & Memory32GB DDR4 / 32GB DDR4 ECC
Optional: 64GB DDR4 / 64GB DDR4 ECC

500GB SATA HDD / 512GB SATA SSD
Optional: 1TB SATA HDD / 1TB SATA SSD

Disk management: RAID 0 / RAID 1 i
KeyboardLED backlit membrane keyboard with integrated numeric keypad
Optional: LED backlit rubber keyboard
Pointing DeviceTouchpad
- Glide touchpad with scroll bar
Expansion Slots
(Will have same disclaimer number and Dimensions
(disclaimer number vary from model to model)
Smart card reader x 1
ExpressCard/54 x 1
PCMCIA Type II x 1
Without SD Card Reader starting March 5th, 2021
Multimedia Bay2nd storage: HDD 500GB
Optional 2nd storage: 1TB HDD / 512GB SSD / 1TB SSD
Optional 2nd battery ii: 10.8V, 9240mAh, 99.8Wh
X BayOptional: SATA HDD / SSD 3TB maximum expandable to 5TB
Disk management: RAID 0, RAID 1, RAID 5
I/O InterfaceAudio input (Mini-jack) x 1
Audio output (Mini-jack) x 1
DC in Jack x 1
USB 3.2 Gen 1 Type-A x 4
LAN (RJ45) x 2
HDMI x 1
External VGA (15-pin; D-sub) x 1
Serial port (9-pin; D-sub) x 2
Communication Interface10/100/1000 base-T Ethernet
Optional: Dedicated GPS
Pre-installed SoftwareGetac Utility
Getac Geolocation
Adaptec Storage Manager™ ii
Optional: Absolute Persistence®
Security FeaturesTPM 2.0
Kensington lock
Intel® vPro™ Technology
Smart card reader
PowerAC adapter (150W, 100-240VAC, 50/60Hz)
Li-ion smart battery (10.8V, 9240mAh, 99.8Wh)
Optional: Multimedia bay 2nd Li-ion smart battery (10.8V, 9240mAh, 99.8Wh) ii
Dimension (W x D x H) & Weight410 x 320 x 65mm (16.1" x 12.6" x 2.5")
5.2kg (11.4lbs) iii

410 x 320 x 119mm (16.1" x 12.6" x 4.6") iv
8.6kg (18.9lbs) iii,iv
Rugged FeaturesMIL-STD-810H certified
IP65 certified
Vibration & drop resistant
Full magnesium alloy case
Shock-protected removable HDD
Environmental SpecificationsTemperature v:
- Operating: -20°C to 55°C / -4°F to 131°F
- Storage: -40°C to 71°C / -40°F to 160°F
Humidity:
- 95% RH, non-condensing
AccessoriesBattery (10.8V, 9240mAh, 99.8Wh)
AC adapter (150W, 100-240VAC)

Optional:
Backpack ii
Battery (10.8V, 9240mAh, 99.8Wh)
Multimedia bay 2nd HDD ii
Multimedia bay 2nd battery (10.8V, 9240mAh, 99.8Wh) ii
Multi-Bay charger (Dual-Bay)
AC adapter (150W, 100-240VAC)
Office dock AC adapter (150W, 100-240VAC)
Protection film
Bumper-to-Bumper WarrantyAccidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime.
That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs.
Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days.

Standard
5 years Bumper-to-Bumper

  1. 2nd multimedia HDD is required for RAID 0, RAID 1 configuration.
  2. Software, hardware and accessories may vary depending on configuration.
  3. Weight and dimensions vary from configurations and optional accessories. Depth including hard handle.
  4. Dimension measured with expansion unit.
  5. Tested by an independent third-party test lab following MIL-STD-810H. Recommend system boot-up temperature below 40°C.
  6. Information provided herewith is for reference only, available specification shall be subjected to quotation by request.

Information provided herewith is for reference only, available specification shall be subjected to quotation by request.

X500 Server Accessories


AC Adapter
AC Adapter

AC Adapter with Power Cord (150W, 100-240VAC)

Battery Charger
Battery Charger

Dual bay battery charger for the main battery

Carry Bag
Carry Bag
Hard Disc Drive
Hard Disc Drive

1TB HDD with heater and canister

Hard Disc Drive
Hard Disc Drive

500GB HDD with heater and canister

Battery
Battery

Main battery (10.8V, 8700mAh)

Main Storage
Main Storage
Media Bay Battery
Media Bay Battery

Media bay battery for dual battery configuration

Media Bay Solid State Drive
Media Bay Solid State Drive

Solid State Drive is available in both 512GB and 1TB.

Protection Film
Protection Film

X500 Screen Protection Film with anti-glare and anti-reflection

Removable Media Bay 500GB
Removable Media Bay 500GB

Removable Media Bay 500GB HDD (7200RPM)

Removable Media Bay Battery
Removable Media Bay Battery

Removable Battery Pack (10.8V, 8700mAh)
