Getac EX80

(Saudi Arabia Only)

Sealed for safety.

The ruggedly designed EX80 tablet delivers Windows touchscreen technology to the frontlines of the oil and gas industry.

Sealed for safety.

Certified for duty under harsh conditions and where fire hazards may be present, the EX80 brings image clarity, precision input ability, and maximum safety, along with the proven power of the Windows 10 operating system, wherever work takes you.

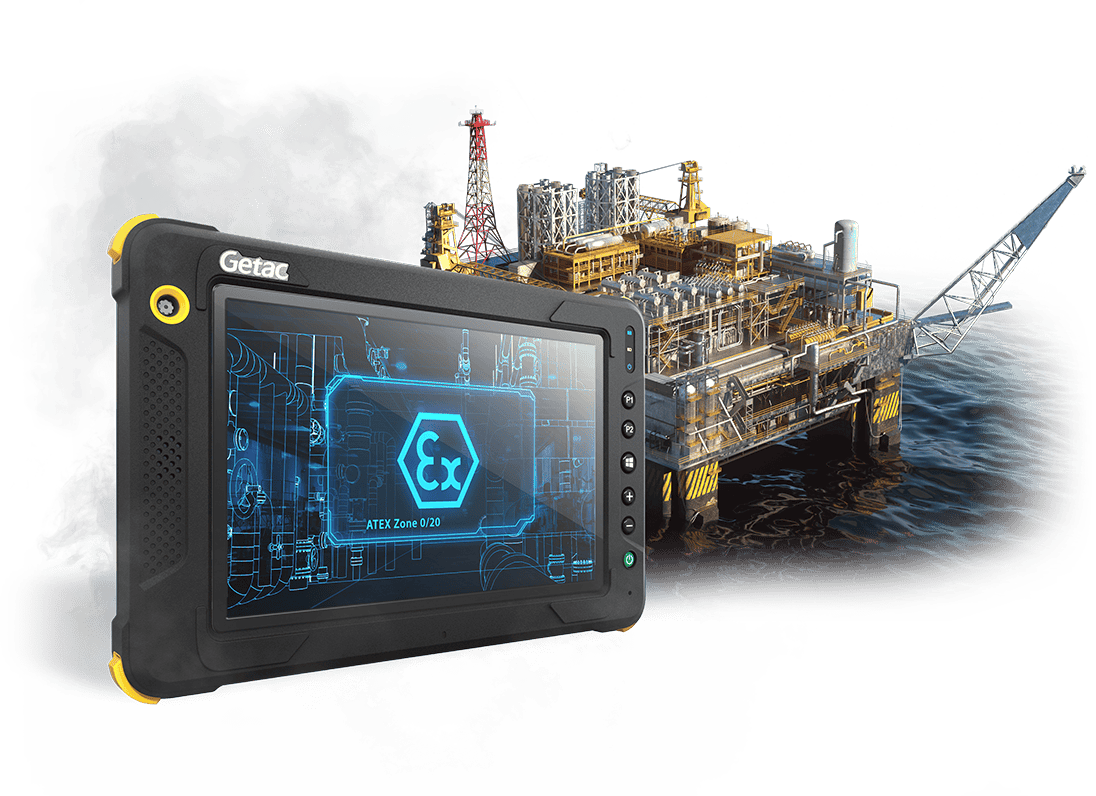

True mobility across hazardous zones

The fully rugged EX80 tablet offers great convenience and productivity in a single intrinsically safe mobile device that allows cross-zone operations in Zone 1, Zone 2, and non-hazardous areas. The EX80 has passed extremely stringent tests for explosive environment and received certifications from a reputable third party. The EX80 is certified with ATEX & IECEx Zone 0/20 and UL913 Class I/II Division 1.



Designed Safe

The EX80 was engineered from the ground up with user well-being in mind. Surface temperature control, mechanical testing, fault protection, silicone potting compound encapsulation, and the power management system combine to provide ultimate safety during operations. This makes the EX80 uniquely suited for use in the oil and gas industry, where a single stray spark may lead to disastrous consequences.

Thin and Compact

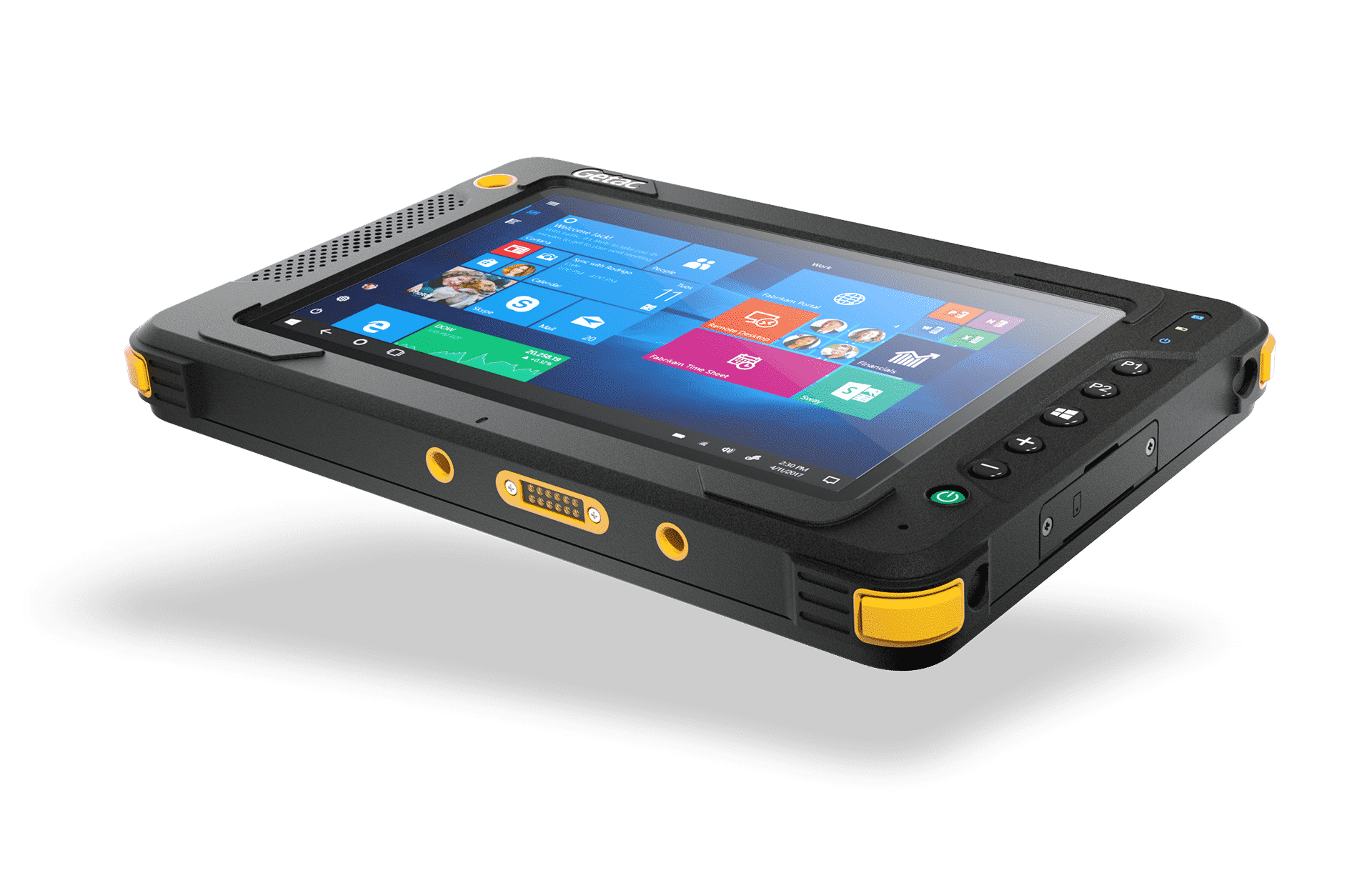

Size matters when it comes to mobility. Weighing in at 1.48 kg and with a thickness of 1.14 inches, the EX80 fits ergonomically in one hand, and the non-slip case makes it easier to grip. Frontline operatives will feel no extra burden when they bring the EX80 along with their tools and equipment.

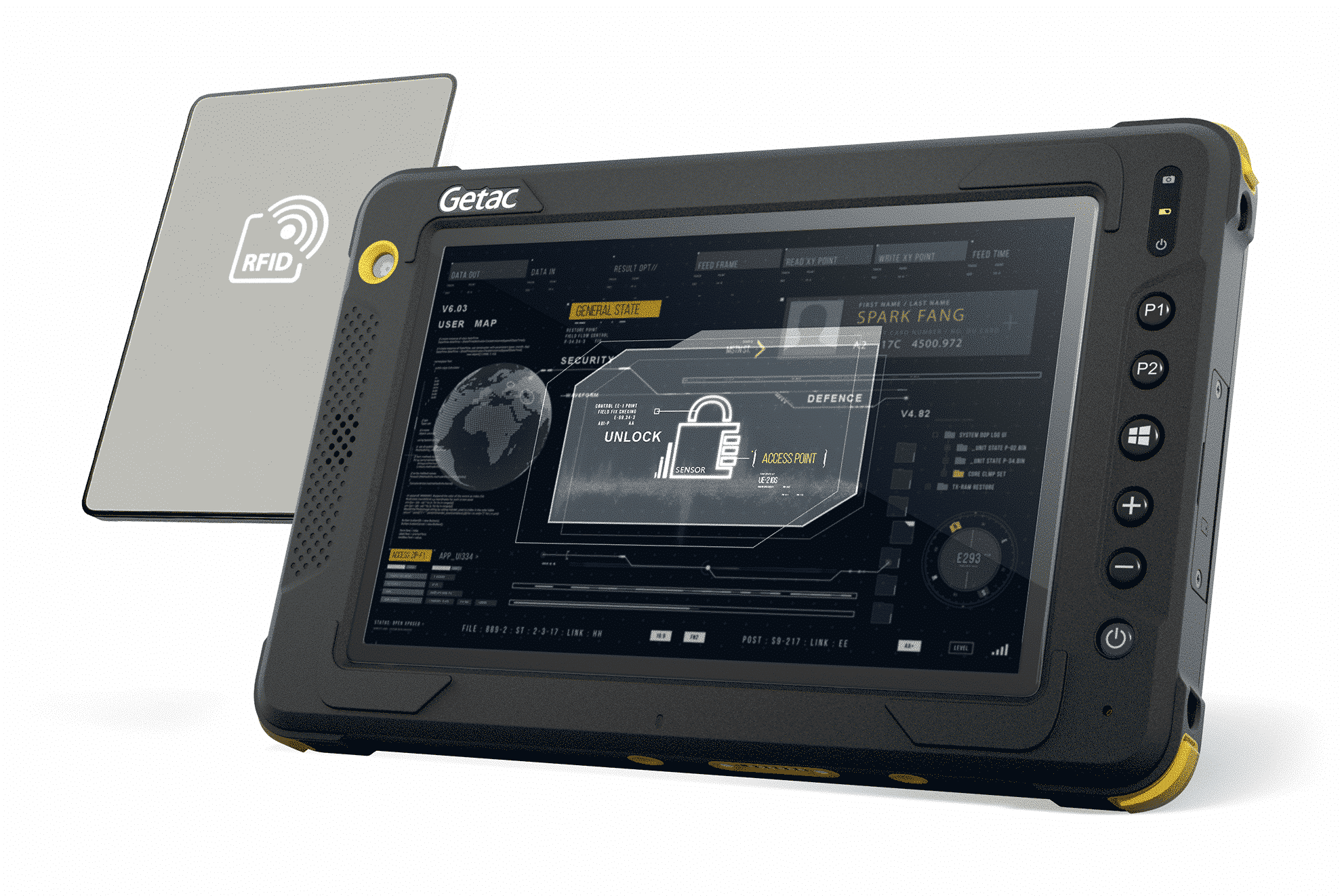

Precise & Convenient Data Collection

The contactless HF RFID reader and Getac button manager ensure efficient and exact data collection, decreasing the amount of time you have to spend exposed to unsafe working conditions. RFID can be used for product identification and quality control, reducing the possibility of accidents caused by human error.

Accessorize for Better Performance

The EX80’s rotating hand strap converts to a kickstand or stylus holder. A two- or four-point shoulder strap, as well as an office dock provide a wealth of convenient use options in workplaces where hands-free carrying and ease of access is paramount to successfully completing critical missions.

Bright 8" Sunlight-Readable Display

The EX80’s brilliant 8″ sunlight-readable display with WXGA IPS (600 NITs) screen offers clear and easy viewing in challenging conditions. No matter how bright the sun gets in oil fields or on offshore oil platforms, the information on your screen will always be as clear as day.

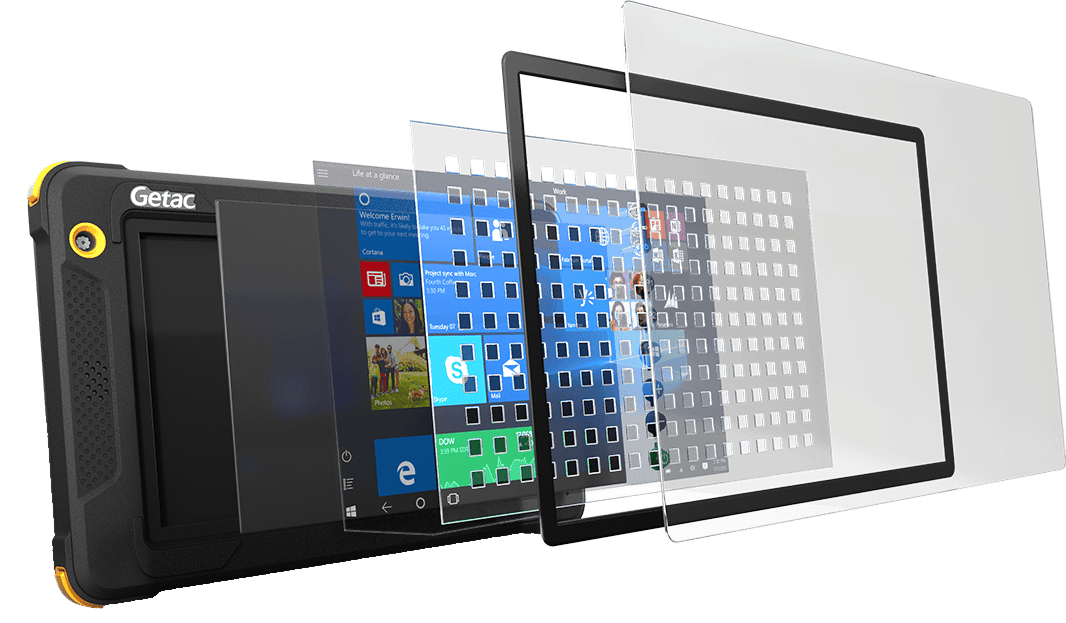

LumiBond® 2.0 — Touch Responsive

Our revolutionary LumiBond® 2.0 technology bonds the display glass to the touch panel and LCD, creating a single panel that is more durable and readable, with enhanced contrast and crisper colors than other rugged display. The bonded panel responds effortlessly to every touch. Advanced touch modes allow operation in the rain with gloves and the included hard-tip stylus, making the EX80 ideal for signatures and precise note taking, especially when you need to work outdoors in bad weather.

Built to Survive™

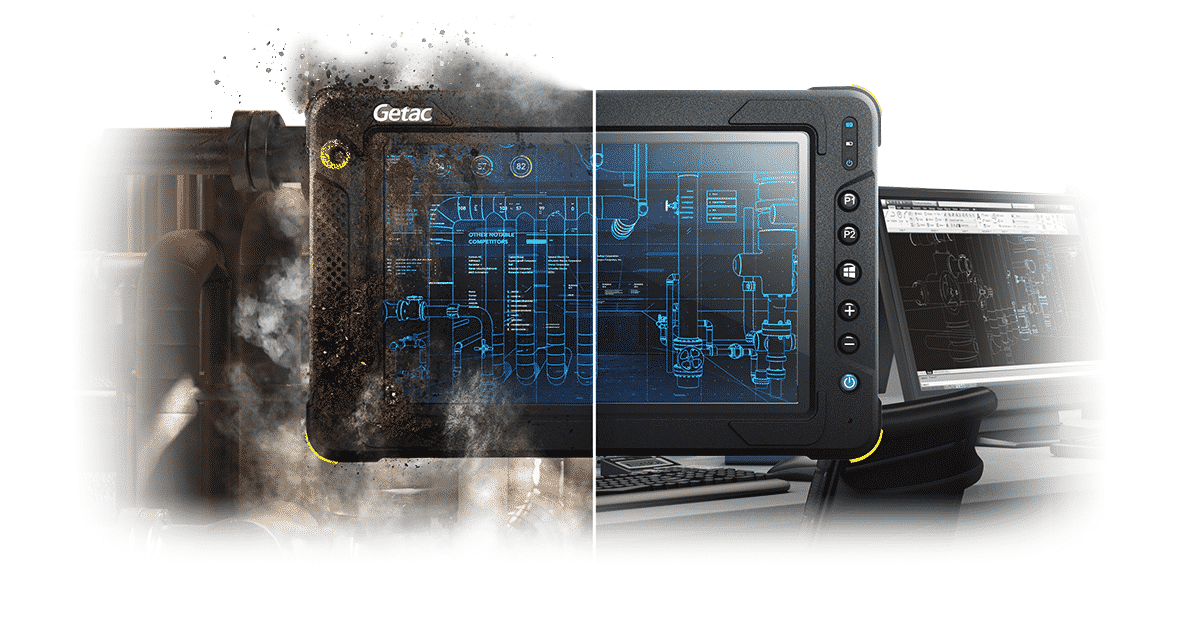

Getac manufactures rugged tablets down to the chassis. The EX80 is engineered to withstand drops, shocks, spills, vibration, dust, liquid, and more. Independently tested and certified to MIL-STD-810G and IP67 standards, the tablet is salt fog resistant. It is ideal for use in the harsh environments found on offshore oil platforms and in oil fields, where a less-rugged device may not survive.

Getac EX80 Features

EX80 (Saudi Arabia Only)
Windows 10 Pro

The EX80 runs on the Windows 10 Pro operating system. The popular and powerful OS eliminates compatibility issues with most home and office systems, ensuring greater convenience and data clarity.

EX80 (Saudi Arabia Only)
Front and Rear Cameras

Available front full-HD and rear 8 MP cameras make image and video capture, video conferencing, barcode scanning and field training convenient and simple from any location. Frontline operatives will be able to count on the full support of the home office when they run into situations that require a team effort.

EX80 (Saudi Arabia Only)
Security Redefined

Experience a robust suite of security features, including multi factor authentication, to protect against malicious threats and intrusions.

EX80 (Saudi Arabia Only)
Dual Band 802.11a/b/g/n Wi-Fi

Take advantage of faster and more reliable data speeds with the state-of-the-art wireless technology.

EX80 (Saudi Arabia Only)
Bluetooth 4.0

Transmit and receive data between Bluetooth® devices with ease

EX80 (Saudi Arabia Only)
Excellent Connectivity

The EX80 integrates high-speed wireless communication technologies to keep you online.

EX80 (Saudi Arabia Only)
Dedicated GPS

The EX80's dedicated GPS offers better search capacity, faster location positioning, and improved accuracy.

EX80 (Saudi Arabia Only)
Advanced WWAN Performance

The EX80’s WWAN configuration provides blazing fast download and upload speeds with fewer dropouts.

EX80 (Saudi Arabia Only)
Full-Shift Battery Life

The EX80 provides top battery runtime performance in its class for mission-critical field operations. A high-capacity main battery delivers the power to move freely into the field and away from power outlets. There is no way to safely charge a battery in an explosive atmosphere, but with the EX80, you won't have to worry about running out of power.

Exceeding Expectations.

Our new Bumper-to-Bumper fully rugged warranties go beyond the expected to protect your productivity.

3 to 5 Years Warranty

Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime. That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs. Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days.

Standard 3 to 5 years Bumper-to-Bumper

For full details of the warranty protection, see the Terms and Conditions.

3 Years Warranty

5 Years Warranty

For Australia, see the Terms and Conditions.

3 Years Warranty

5 Years Warranty

*Images shown are for reference only. Actual product may vary due to product enhancement

EX80 TECHNICAL SPECIFICATIONS

Download PDF
Operating System

Windows 10 IoT Enterprise

Mobile Computing Platform

Intel Atom® Processor x5-Z8350 1.44GHz Max. 1.92GHz - 2MB Cache

VGA Controller

Intel® HD Graphics

Display

8" IPS TFT LCD WXGA (1280 x 800) 600 nits LumiBond® display with Getac sunlight readable technology Capacitive multi-touch screen

Storage & Memory

4GB LPDDR3
128GB eMMC

Keyboard

Power button
5 tablet programmable buttons

Pointing Device

Touchscreen
- Capacitive multi-touch screen

I/O Interface

FHD webcam x 1
8M pixels auto focus rear camera x 1
Docking connector x 1
Optional: SIM card slot x 1

Communication Interface

Wi-Fi 802.11 a/b/g/n
Bluetooth (v4.0) i
Dedicated GPS (with internal antenna)
Optional: 4G LTE mobile broadband

Security Features

TPM 2.0
HF RFID reader

Power

Li-ion battery (7.4V, typical 4200mAh; min. 4080mAh)
Office dock (Charging cradle with AC adapter, 24W, 100-240VAC, 50/60Hz)

Dimension (W x D x H) & Weight

240 x 155 x 29mm (9.4" x 6.1" x 1.14")
1.48kg (3.2lbs) iii

Rugged Features

MIL-STD-810G certified
IP67 certified
Vibration & 6ft (1.8m) drop resistant iv
Salt fog certified
ATEX & IECEx certified

Environmental Specifications

Temperature v:
- Operating: -21°C to 50°C / -5.8°F to 122°F
- Storage: -51°C to 71°C / -60°F to 160°F
Humidity:
- 95% RH, non-condensing

Explosion Protection

ATEX/IECEX
Ex II 1 GD
Ex ia op is IIC T4 Ga
Ex ia op is IIIC T135°C Da
UL913
Class I, Zone 0, AEx ia op is IIC T4 Ga
Class II, Zone 20, AEx ia op is IIIC T135°C Da
Class I, Division 1, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class III, Division 1

Pre-installed software

Getac Utility
Optional: Absolute Persistence®

Accessories

Capacitive stylus with tether
Rotating hand strap with kick stand and stylus holder

Optional:
Multi-Bay charger (Six-Bay)
Office dock (Charging cradle with AC adapter, 24W, 100-240VAC, 50/60Hz) ii
Capacitive stylus with tether
Shoulder strap (2-point)
Shoulder harness (4-point; handsfree)
Stylus holder

Bumper-to-Bumper Warranty

Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime.
That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs.
Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days.

Standard
3 years Bumper-to-Bumper

  1. Bluetooth performance and connectable distance may be subject to interference with the environments and performance on client devices, users may be able to reduce effects of interference by minimizing the number of active Bluetooth wireless devices that is operating in the area.
  2. For use in non-hazardous areas only.
  3. Weight varies from configurations and optional accessories.
  4. Drop test results vary from configurations and optional accessories.
  5. Tested by an independent third-party test lab following MIL-STD-810G.

Information provided herewith is for reference only, available specification shall be subjected to quotation by request.

EX80 Accessories


AC Adapter Set
Capacitive Hard Tip Stylus & Tether
EX80 Office Dock

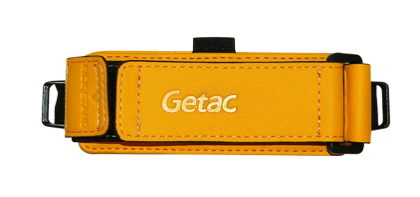

EX80 Rotating Hand Strap with Kick Stand And Stylus Holder

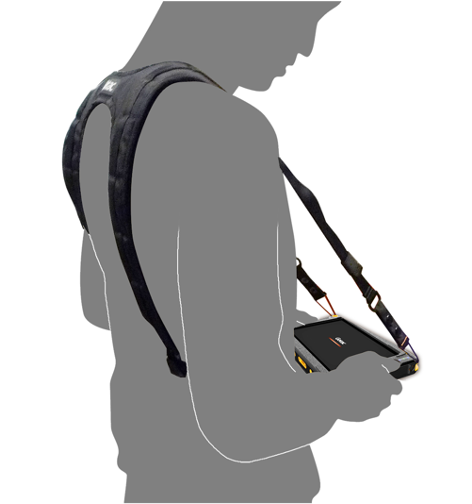

EX80 Shoulder Harness 4-point

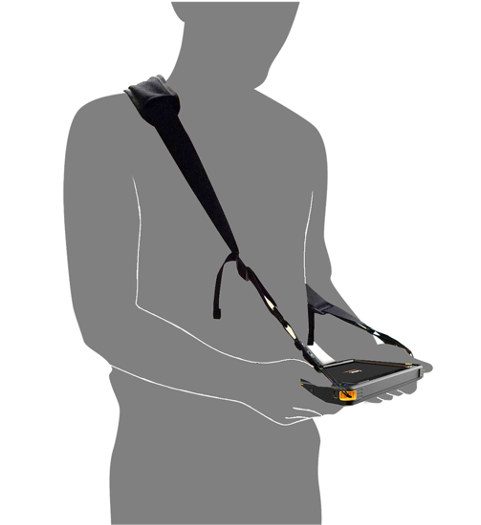

EX80 Shoulder Strap 2-point

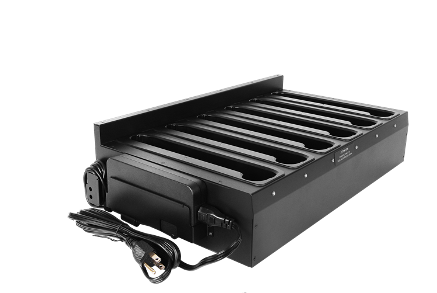

EX80 Six Bay Charger with 120W AC Adapter

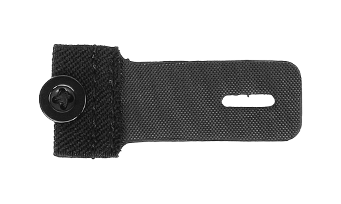

EX80 Stylus Holder
